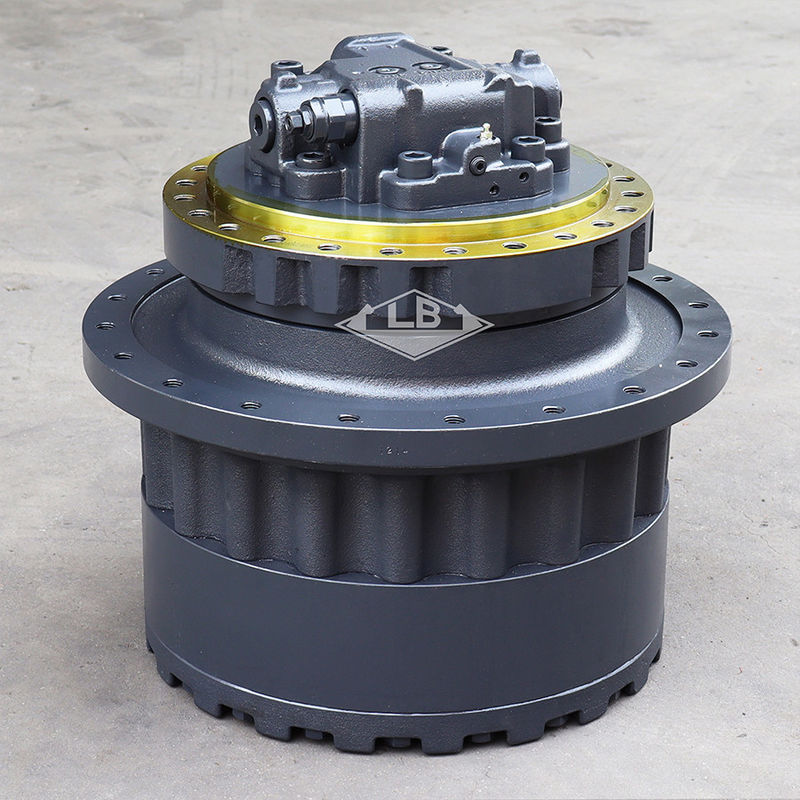

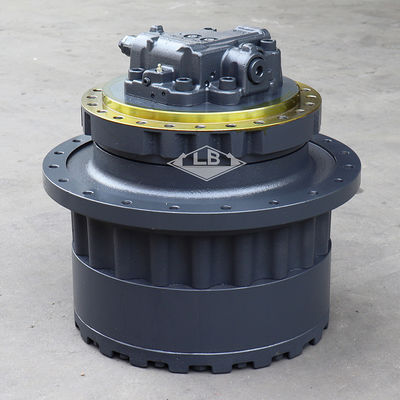

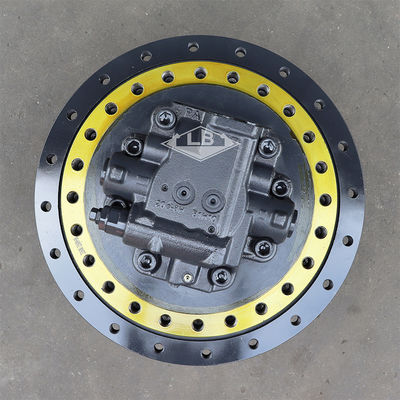

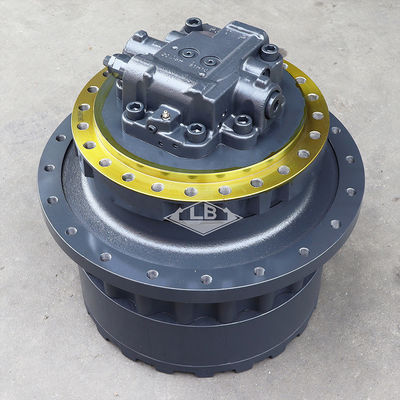

PC300-7 PC360-7 Final Drives For Excavators 207-27-00440 207-27-00441 207-27-00370 207-27-00371
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| High Light: | 207-27-00440,207-27-00441,PC300-7 final drives for excavators |
||
|---|---|---|---|
Product Description
PC300-7 PC360-7 Final drive 207-27-00440 207-27-00441 207-27-00370 207-27-00371 207-27-00260 207-27-00261 PC300-7 Final
PRODUCT PARAMETERS
| Part name | PC300-7 PC350-7 PC360-7 PC300-8 PC350-8 Final drive | |||||
| Equipment | Apply to KOMASTU EXCAVATOR | |||||
| Part no. | 207-27-00440 207-27-00441 207-27-00370 207-27-00371 207-27-00260 207-27-00261 | |||||
| Frame holes | 24 | |||||
| Sprocket holes | 20 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 505 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 207-27-00441 | [2] | FINAL DRIVE ASSY Komatsu | 670 kg. | |
| ["SN: 47590-UP"] analogs:["2072700372", "2072700373", "2072700371", "2072700440", "2072700370", "R2072700373", "R2072700441"] |$2. | ||||
| 207-27-00373 | [2] | FINAL DRIVE ASSY Komatsu | 670 kg. | |
| ["SN: 46493-47589"] analogs:["2072700441", "2072700372", "2072700371", "2072700440", "2072700370", "R2072700373", "R2072700441"] |$3. | ||||
| 207-27-00372 | [2] | FINAL DRIVE ASSY Komatsu | 670 kg. | |
| ["SN: 46490-46492"] analogs:["2072700441", "2072700373", "2072700371", "2072700440", "2072700370"] |$4. | ||||
| 207-27-00371 | [2] | FINAL DRIVE ASSY Komatsu | 670 kg. | |
| ["SN: 45001-46489"] analogs:["2072700441", "2072700372", "2072700373", "2072700440", "2072700370"] |$5. | ||||
| 1. | 708-8H-00320 | [1] | MOTOR ASSY Komatsu | 177.001 kg. |
| ["SN: 40001-UP"] | ||||
| 207-27-00310 | [1] | FLOATING SEAL ASSY Komatsu OEM | 3.72 kg. | |
| ["SN: 40310-UP"] analogs:["1702700025", "1702700024", "4233300021"] |$8. | ||||
| 4. | 207-27-71311 | [1] | HUB Komatsu OEM | 116.5 kg. |
| ["SN: 40001-UP"] | ||||
| 5. | 207-27-71330 | [2] | BEARING Komatsu OEM | 7 kg. |
| ["SN: 40001-UP"] | ||||
| 6. | 207-27-52350 | [1] | O-RING Komatsu China | 0.02 kg. |
| ["SN: 40001-UP"] | ||||
| 7. | 207-27-71370 | [1] | LOCK Komatsu | 0.075 kg. |
| ["SN: 40001-UP"] | ||||
| 8. | 207-27-71360 | [1] | LOCK NUT Komatsu | 5.1 kg. |
| ["SN: 40001-UP"] | ||||
| 9. | 01010-81020 | [2] | BOLT Komatsu | 0.161 kg. |
| ["SN: 40001-UP"] analogs:["801014093", "0101051020", "801015108"] | ||||
| 10. | 207-27-71320 | [1] | CARRIER Komatsu OEM | 38.5 kg. |
| ["SN: 40001-UP"] | ||||
| 11. | 207-27-71140 | [4] | GEAR Komatsu OEM | 8.28 kg. |
| ["SN: 40001-UP"] | ||||
| 12. | 207-27-63210 | [4] | BEARING Komatsu OEM | 0.6 kg. |
| ["SN: 40001-UP"] | ||||
| 13. | 20Y-27-21250 | [8] | WASHER Komatsu China | 0.03 kg. |
| ["SN: 40001-UP"] | ||||
| 14. | 207-27-63230 | [4] | PIN Komatsu OEM | 1.68 kg. |
| ["SN: 40001-UP"] | ||||
| 15. | 20Y-26-21330 | [4] | PIN Komatsu China | 0.1 kg. |
| ["SN: 40001-UP"] | ||||
| 16. | 20Y-27-13310 | [1] | WASHER Komatsu China | 0.08 kg. |
| ["SN: 40001-UP"] | ||||
| 17. | 207-27-71130 | [1] | GEAR Komatsu OEM | 3.14 kg. |
| ["SN: 40001-UP"] | ||||
| 18. | 207-27-71152 | [1] | RING GEAR Komatsu OEM | 55.8 kg. |
| ["SN: 40340-UP"] analogs:["2072771151"] | ||||
| 19. | 207-27-71250 | [1] | WASHER Komatsu OEM | 0.05 kg. |
| ["SN: 40001-UP"] | ||||
| 20. | 207-27-71161 | [1] | CARRIER Komatsu OEM | 9.4 kg. |
| ["SN: 40001-UP"] | ||||
| 21. | 207-27-71121 | [3] | GEAR Komatsu OEM | 4.83 kg. |
| ["SN: 40001-UP"] | ||||
| 22. | 207-27-61220 | [3] | BEARING Komatsu China | 0.74 kg. |
| ["SN: 40001-UP"] | ||||
| 23. | 20Y-27-21240 | [6] | WASHER Komatsu China | 0.02 kg. |
| ["SN: 40001-UP"] | ||||
| 24. | 207-27-61240 | [3] | PIN Komatsu China | 2.49 kg. |
| ["SN: 40001-UP"] | ||||
| 25. | 20Y-27-21280 | [3] | PIN Komatsu China | 0.01 kg. |
| ["SN: 40001-UP"] | ||||
| 26. | 207-27-71352 | [1] | SHAFT Komatsu China | 2.1 kg. |
| ["SN: 40001-UP"] | ||||
| 27. | 20Y-27-11250 | [1] | SPACER Komatsu OEM | 0.044 kg. |
| ["SN: 40001-UP"] analogs:["2052771570"] | ||||
| 28. | 20Y-27-22250 | [1] | BUTTON Komatsu China | 0.05 kg. |
| ["SN: 40001-UP"] | ||||
| 29. | 207-27-71341 | [1] | COVER Komatsu | 55.32 kg. |
| ["SN: 46490-UP"] analogs:["2072771340"] | ||||
| 29. | 207-27-71340 | [1] | COVER Komatsu | 55.32 kg. |
| ["SN: 45001-46489"] analogs:["2072771341"] | ||||
| 30. | 01011-61880 | [20] | BOLT Komatsu | 0.402 kg. |
| ["SN: 40001-UP"] | ||||
| 31. | 01643-31845 | [20] | WASHER Komatsu China | 0.02 kg. |
| ["SN: 40001-UP"] analogs:["0164321845", "R0164331845"] | ||||
| 32. | 07049-01215 | [2] | PLUG Komatsu | 0.001 kg. |
| ["SN: 40001-UP"] | ||||
| 33. | 07044-12412 | [3] | PLUG Komatsu | 0.09 kg. |
| ["SN: 40001-UP"] analogs:["0704402412", "R0704412412"] | ||||
| 34. | 07002-02434 | [3] | O-RING Komatsu China | 0.01 kg. |
| ["SN: 40001-UP"] analogs:["0700212434", "0700213434"] | ||||
| 35. | 207-27-71460 | [1] | SPROCKET Komatsu China | 66.7 kg. |
| ["SN: 46493-UP"] analogs:["2072761210"] | ||||
| 35. | 207-27-61210 | [1] | SPROCKET Komatsu China | 66.7 kg. |
| ["SN: 40001-46492"] analogs:["2072771460"] | ||||
| 36. | 207-27-51311 | [20] | BOLT Komatsu China | 0.222 kg. |
| ["SN: 40001-UP"] analogs:["2072751310", "20727K1120", "20727K1130"] | ||||
| 37. | 01010-82075 | [42] | BOLT Komatsu China | 0.25 kg. |
| ["SN: 40001-UP"] analogs:["0101062075", "0101032075", "0101052075"] | ||||
| 38. | 01643-32060 | [42] | WASHER Komatsu China | 0.044 kg. |
| ["SN: 40001-UP"] analogs:["802170007", "0164322045", "0164302045"] | ||||
| 39. | 207-30-71242 | [2] | COVER Komatsu China | |
| ["SN: 45491-UP"] | ||||
| 39. | 207-30-71240 | [2] | COVER Komatsu China | |
| ["SN: 45001-45490"] | ||||
| 40. | 01010-81640 | [12] | BOLT Komatsu | 0.264 kg. |
| ["SN: 40001-UP"] analogs:["0101061640", "801015186", "0101031640", "0101051640"] | ||||
| 41. | 01643-31645 | [12] | WASHER Komatsu | 0.072 kg. |
| ["SN: 40001-UP"] analogs:["802170005", "0164301645"] | ||||
