• PC400-6 PC450-6 Gearbox Final Drive With Motor 208-27-00150 208-27-00151 PC400-6
  • PC400-6 PC450-6 Gearbox Final Drive With Motor 208-27-00150 208-27-00151 PC400-6
  • PC400-6 PC450-6 Gearbox Final Drive With Motor 208-27-00150 208-27-00151 PC400-6
  • PC400-6 PC450-6 Gearbox Final Drive With Motor 208-27-00150 208-27-00151 PC400-6
PC400-6 PC450-6 Gearbox Final Drive With Motor 208-27-00150 208-27-00151 PC400-6

PC400-6 PC450-6 Gearbox Final Drive With Motor 208-27-00150 208-27-00151 PC400-6

Product Details:

Get Best Price Contact Now

Detail Information
High Light:

PC400-6 gearbox final drive

,

PC450-6 gearbox final drive

,

208-27-00150

Product Description

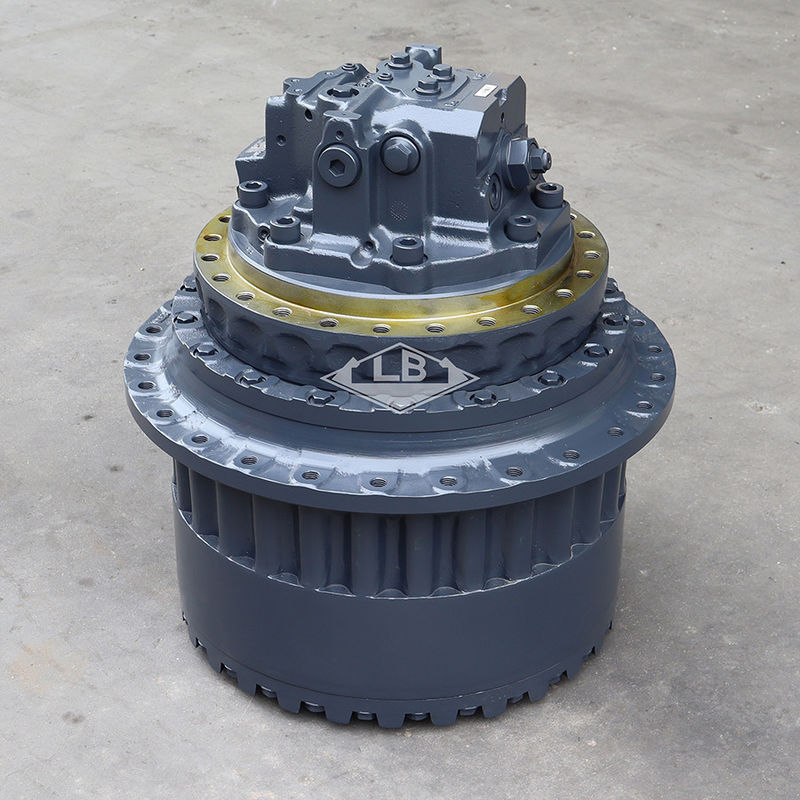

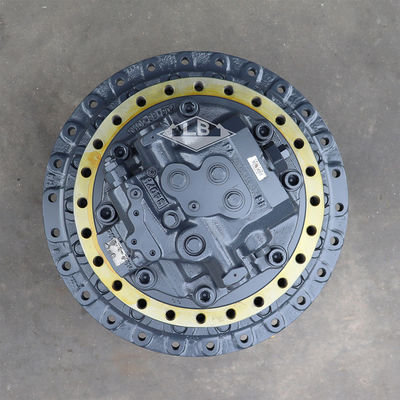

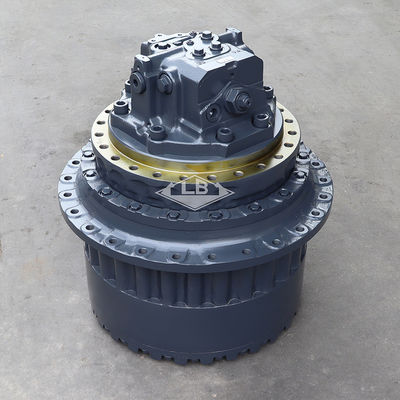

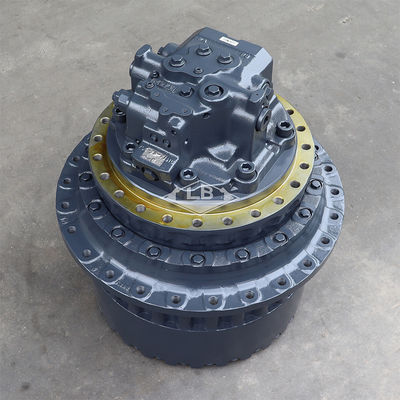

PC400-6 PC450-6 Travel gearbox with motor 208-27-00150 208-27-00151 208-27-00152 PC400-6 Final Drive





PRODUCT PARAMETERS
Part name PC400-6 PC450-6 Travel gearbox
Equipment Apply to KOMATSU EXCAVATOR
Part no. 208-27-00150 208-27-00151 208-27-00152
Frame holes 24
Sprocket holes 26
Item condition New
Logo LB
Gross weight 700 KG
MOQ 1 pc


Product Description

PC400-6(2)PC400-6

Parts on group :

pc400-6

Pos. Part No Qty Parts name Comments
https://   208-27-00152   [2]   FINAL DRIVE ASSY Komatsu 906 kg.
    ["SN: 30338-UP"] analogs:["2082700151", "2082700150", "2082700153"] |1.
    208-27-00151   [2]   FINAL DRIVE ASSY Komatsu 906 kg.
    ["SN: 30194-30337"] analogs:["2082700152", "2082700150", "2082700153"] |1.
    208-27-00150   [2]   FINAL DRIVE ASSY Komatsu 906 kg.
    ["SN: (30001-30193)"] analogs:["2082700151", "2082700152", "2082700153"] |1.
   1.   706-88-00151   [1]   MOTOR ASSY Komatsu 273.001 kg.
    ["SN: 30447-UP"] analogs:["7068800150"]
    706-88-00150   [1]   MOTOR ASSY Komatsu 273.001 kg.
    ["SN: 30338-30446"] analogs:["7068800151"] |1.
    706-88-00111   [1]   MOTOR ASSY Komatsu China
    ["SN: 30194-30337"] analogs:["7068800112", "7068800110"] |1.
    706-88-00110   [1]   MOTOR ASSY Komatsu China
    ["SN: (30001-30193)"] analogs:["7068800111", "7068800112"] |1.
    208-27-00140   [1]   FLOATING SEAL ASSY Komatsu OEM 3.5 kg.
    ["SN: 30467-UP"] |2.
    17M-27-00102   [1]   FLOATING SEAL ASSY Komatsu 3.5 kg.
    ["SN: 30001-30466"] analogs:["17M2700101", "17M2700100"] |2.
   4.   208-27-61192   [1]   HUB Komatsu 120 kg.
    ["SN: 32303-UP"] analogs:["2082761191"]
    208-27-61191   [1]   HUB Komatsu 120 kg.
    ["SN: 30338-32302"] analogs:["2082761192"] |4.
    208-27-61190   [1]   HUB Komatsu 109.8 kg.
    ["SN: 30001-30337"] |4.
   5.   208-27-62110   [2]   BEARING Komatsu 21.85 kg.
    ["SN: 32265-UP"]
    208-27-51240   [2]   BEARING Komatsu 24 kg.
    ["SN: 30001-32264"] analogs:["2082731621"] |5.
   6.   208-27-51212   [1]   COVER Komatsu 15.34 kg.
    ["SN: 30362-UP"] analogs:["2082751211"]
    208-27-51211   [1]   COVER Komatsu 15.34 kg.
    ["SN: 30001-30362"] analogs:["2082751212"] |6.
   7.   01010-81240   [18]   BOLT Komatsu 0.052 kg.
    ["SN: 30001-UP"] analogs:["801015573", "0101051240"]
   8.   01643-31232   [18]   WASHER Komatsu 0.027 kg.
    ["SN: 30001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
   9.   208-27-52350   [1]   O-RING Komatsu 0.023 kg.
    ["SN: 30001-UP"]
   10.   208-27-61270   [1]   LOCK Komatsu 0.28 kg.
    ["SN: 30001-UP"]
   11.   208-27-61261   [1]   NUT Komatsu 10.35 kg.
    ["SN: 30338-UP"]
    208-27-61260   [1]   NUT Komatsu 9.88 kg.
    ["SN: 30001-30337"] |11.
   12.   01010-81020   [2]   BOLT Komatsu 0.161 kg.
    ["SN: 30001-UP"] analogs:["801014093", "0101051020", "801015108"]
   13.   208-27-61170   [1]   CARRIER,2ND Komatsu 46.3 kg.
    ["SN: 30001-UP"]
   14.   208-27-61140   [4]   GEAR Komatsu China 11.25 kg.
    ["SN: 30001-UP"]
   15.   207-27-61230   [4]   BEARING Komatsu 0.65 kg.
    ["SN: 30001-UP"]
   16.   20Y-27-21250   [8]   WASHER Komatsu China 0.03 kg.
    ["SN: 30001-UP"]
   17.   207-27-61250   [4]   PIN Komatsu China 1.75 kg.
    ["SN: 30001-UP"]
   18.   20Y-27-21290   [4]   PIN Komatsu OEM 0.03 kg.
    ["SN: 30001-UP"]
   19.   207-27-52270   [1]   SPACER Komatsu OEM 0.089 kg.
    ["SN: 30001-UP"]
   20.   208-27-61131   [1]   GEAR Komatsu China 4.4 kg.
    ["SN: 30033-UP"] analogs:["2082761130"]
    208-27-61130   [1]   GEAR Komatsu China 4.4 kg.
    ["SN: 30001-30032"] analogs:["2082761131"] |20.
   21.   208-27-61150   [1]   GEAR Komatsu China 86 kg.
    ["SN: 30001-UP"]
   22.   208-27-61160   [1]   CARRIER,1ST Komatsu 13.6 kg.
    ["SN: 30001-UP"]
   23.   208-27-61121   [3]   GEAR Komatsu 5.8 kg.
    ["SN: 30001-UP"]
   24.   207-27-61220   [3]   BEARING Komatsu China 0.74 kg.
    ["SN: 30001-UP"]
   25.   20Y-27-21240   [6]   WASHER Komatsu China 0.02 kg.
    ["SN: 30001-UP"]
   26.   207-27-61240   [3]   PIN Komatsu China 2.49 kg.
    ["SN: 30001-UP"]
   27.   20Y-27-21280   [3]   PIN Komatsu China 0.01 kg.
    ["SN: 30001-UP"]
   28.   208-27-61111   [1]   SHAFT Komatsu 3.09 kg.
    ["SN: 32716-UP"] analogs:["2082761110"]
    208-27-61110   [1]   SHAFT Komatsu 3.09 kg.
    ["SN: 30001-32715"] analogs:["2082761111"] |28.
   29.   20Y-27-11250   [1]   SPACER Komatsu OEM 0.044 kg.
    ["SN: 30001-UP"] analogs:["2052771570"]
   30.   208-27-61350   [1]   BUTTON Komatsu 0.5 kg.
    ["SN: 32716-UP"] analogs:["2072761280"]
    207-27-61280   [1]   BUTTON Komatsu 0.5 kg.
    ["SN: 30001-32715"] analogs:["2082761350"] |30.
   31.   208-27-61180   [1]   COVER Komatsu 37.667 kg.
    ["SN: 30001-UP"]
   32.   207-27-52341   [28]   BOLT Komatsu 0.43 kg.
    ["SN: 30001-UP"]
   33.   01643-31845   [28]   WASHER Komatsu China 0.02 kg.
    ["SN: 30001-UP"] analogs:["0164321845", "R0164331845"]
   34.   07049-01215   [4]   PLUG Komatsu 0.001 kg.
    ["SN: 30001-UP"]
   35.   07044-12412   [3]   PLUG Komatsu 0.09 kg.
    ["SN: 30001-UP"] analogs:["0704402412", "R0704412412"]
   36.   07002-02434   [3]   O-RING Komatsu China 0.01 kg.
    ["SN: 30001-UP"] analogs:["0700212434", "0700213434"]
   37.   208-27-61210   [1]   SPROCKET Komatsu China 60 kg.
    ["SN: 30001-UP"]
   38.   207-27-51311   [26]   BOLT Komatsu China 0.222 kg.
    ["SN: 30001-UP"] analogs:["2072751310", "20727K1120", "20727K1130"]
