EC700B EC700C Final DriveTravel Gearbox With Motor VOE14592003 VOE14613278 VOE14522564
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| High Light: | EC700B travel motor assy,EC700C Travel gearbox,VOE14592003 |
||
|---|---|---|---|
Product Description

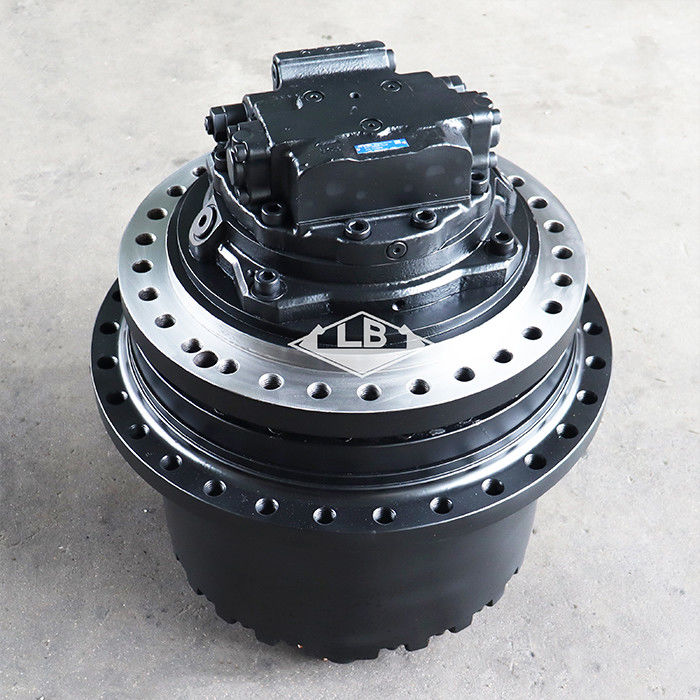

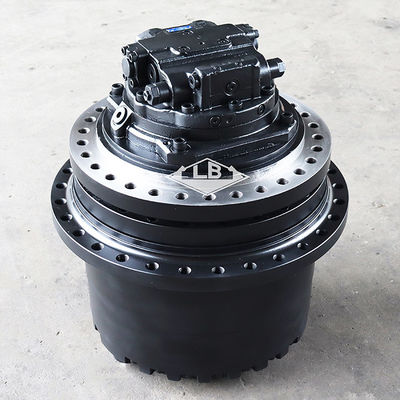

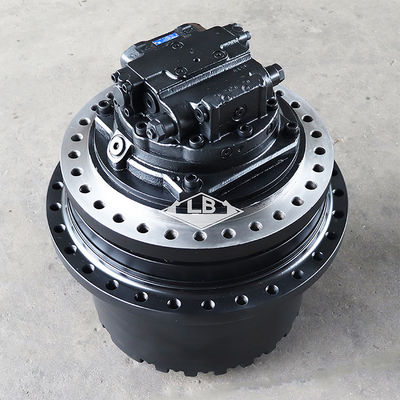

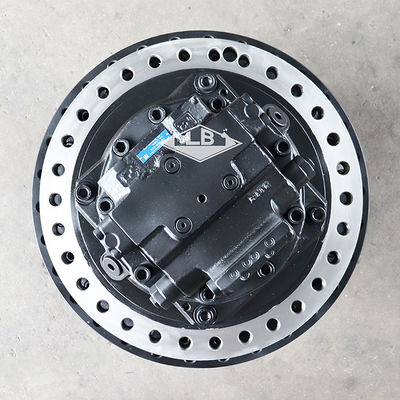

EC700B EC700C FINAL DRIVE Travel gearbox with motor VOE14592003 VOE14613278 VOE14522564 EC700 FINAL DRIVE
PRODUCT PARAMETERS
| Part name | EC700 Final drive | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14592003 VOE14613278 | |||||
| Frame holes | 30 | |||||
| Sprocket holes | 30 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Description

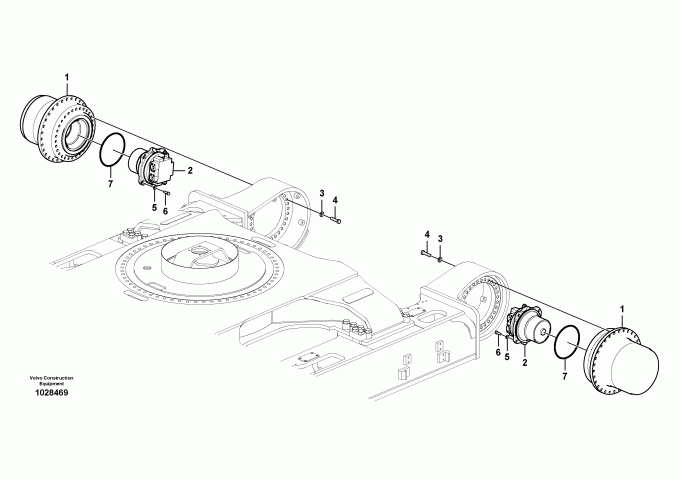

Parts on group Travel motor with mounting parts:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | VOE14592003 | [2] | Reduction gear | S/N 10001-10466 |
| VOE14592003 | [2] | Reduction gear | S/N 10467- | |
| 2. | VOE14522564 | [2] | Travel motor | |
| 3. | VOE60110301 | [60] | Washer | |
| 4. | VOE992996 | [60] | Hexagon screw | |
| 5. | VOE60110300 | [8] | Washer | |
| 6. | VOE990855 | [8] | Hexagon screw | |
| 7. | VOE14539096 | [2] | O-ring |
