9134825 9148909 Travel Gear Box 9150472 9155253 9142964 9144136 EX200-5 EX200-5 TRAVEL DEVICE
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| High Light: | 9134825 Travel Gear box,9148909 Travel Gear box,9150472 |
||
|---|---|---|---|
Product Description

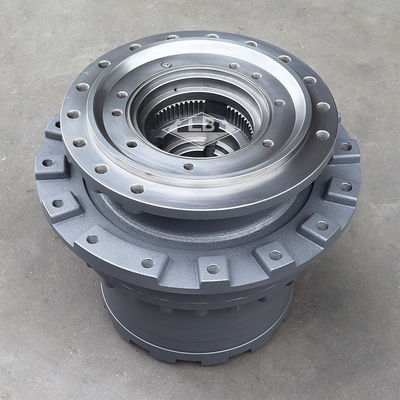

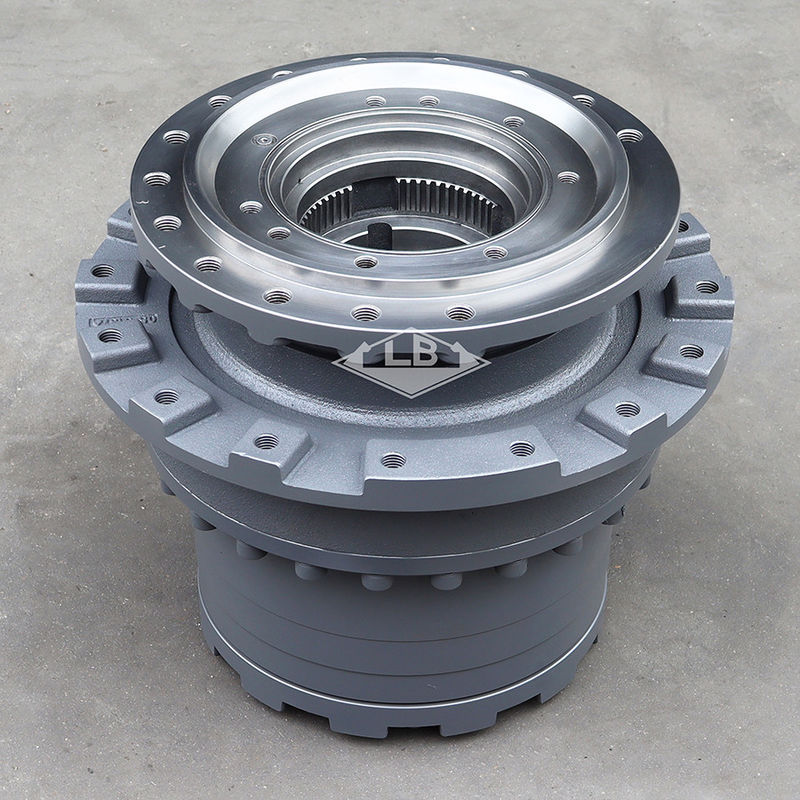

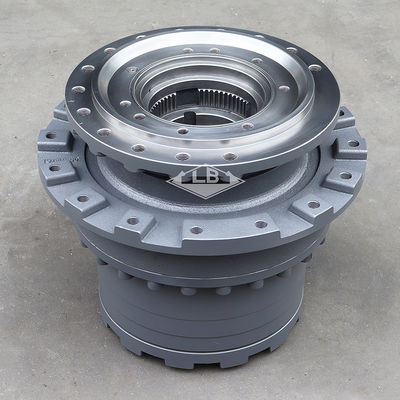

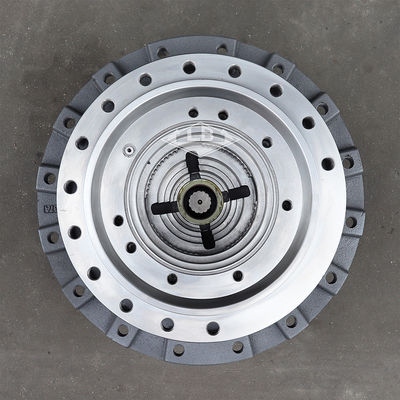

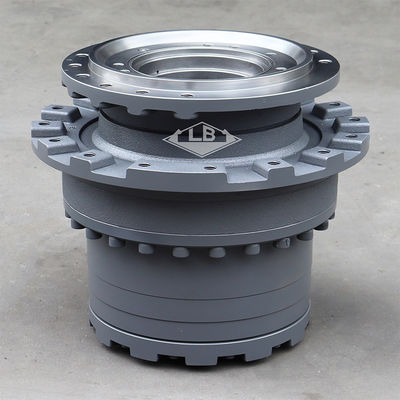

EX200-5 TRAVEL DEVICE 9134825 9148909 9150472 9155253 9142964 9144136 EX200-5 Travel gearbox
PRODUCT PARAMETERS
| Part name | EX200-5 Travel gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9134825 9148909 9150472 9155253 9142964 9144136 | |||||
| Frame holes | 14 | |||||
| Sprocket holes | 16 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 225 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group TRAVEL DEVICE:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 9134825 | [2] | TRAVEL DEVICE ASSY | I 9148909 (for assembly of machine) | |
| (9148909) | [2] | TRAVEL DEVICE ASSY | (for transportation) | |
| 9150472 | [2] | TRAVEL DEVICE ASSY | I 9155253 (for assembly of machine) | |
| (9155253) | [2] | TRAVEL DEVICE ASSY | (for transportation) | |
| 9142964 | [2] | TRAVEL DEVICE ASSY | I 9144136 (for assembly of machine) | |
| (9144136) | [2] | TRAVEL DEVICE ASSY | (for transportation) | |
| 00. | 9146471 | [1] | MOTOR;OIL | I 9149087 (for assembly of machine) |
| 00. | (9144066) | [1] | MOTOR;OIL | (for transportation) |
| 00. | (9149087) | [1] | MOTOR;OIL | (for transportation) |
| 00. | (9149085) | [1] | MOTOR;OIL | (for transportation) |
| 00. | 9133918 | [1] | MOTOR;OIL | I 9149085 (for assembly of machine) |
| 00. | 9142661 | [1] | MOTOR;OIL | I 9144066 (for assembly of machine) |
| 02. | 4114753 | [1] | SEAL;GROUP | |
| 03. | 4246793 | [2] | BRG.;ROL. | |
| 04. | 1018736 | [1] | DRUM | |
| 05. | 1020990 | [1] | SPROCKET | Y 1018740 |
| 05. | 1018740 | [1] | SPROCKET | |
| 06. | J932055 | [16] | BOLT | |
| 07. | A590920 | [16] | WASHER;SPRING | |
| 08. | 3047448 | [1] | HUB | |
| 09. | 3057125 | [1] | NUT | |
| 10. | 4246783 | [1] | PIN;KNOCK | |
| 12. | 1019147 | [1] | CARRIER | |
| 13. | 3063957 | [3] | GEAR;PLANETARY | |
| 14. | 4317122 | [6] | BRG.;NEEDLE | |
| 15. | 4284521 | [6] | PLATE;THRUST | |
| 16. | 4315838 | [3] | PIN | |
| 17. | 4116309 | [3] | PIN;SPRING | |
| 18. | 3063959 | [1] | GEAR;SUN | |
| 20. | 1020184 | [1] | GEAR;RING | |
| 20. | 1018789 | [1] | GEAR;RING | |
| 21. | J931640 | [24] | BOLT | |
| 23. | 2034836 | [1] | CARRIER | |
| 24. | 4192979 | [2] | SPACER | |
| 25. | 3063956 | [3] | GEAR;PLANETARY | |
| 26. | 4317121 | [3] | BRG.;NEEDLE | |
| 27. | 4210851 | [6] | PLATE;THRUST | |
| 28. | 4309995 | [3] | PIN | |
| 29. | 4192020 | [3] | PIN;SPRING | |
| 30. | 3063958 | [1] | GEAR;SUN | |
| 32. | 2034835 | [1] | CARRIER | |
| 33. | 3063955 | [3] | GEAR;PLANETARY | |
| 34. | 4210849 | [3] | BRG.;NEEDLE | <200,SS,HG,LV,X,E,H,K> |
| 34. | 4317120 | [3] | BRG.;NEEDLE | |
| 35. | 4192910 | [6] | PLATE;THRUST | |
| 36. | 4210853 | [3] | PIN | |
| 37. | 4173093 | [3] | PIN;SPRING | |
| 38. | 2034834 | [1] | SHAFT;PROP. | |
| 40. | 2034833 | [1] | COVER | |
| 41. | 4285323 | [1] | PIN;STOPPER | |
| 42. | J011230 | [12] | BOLT;SEMS | |
| 43. | 4245797 | [3] | PLUG | |
| 47. | M492564 | [2] | SCREW;DRIVE | |
| 48. | 3053559 | [1] | NAME-PLATE |
