Product Description

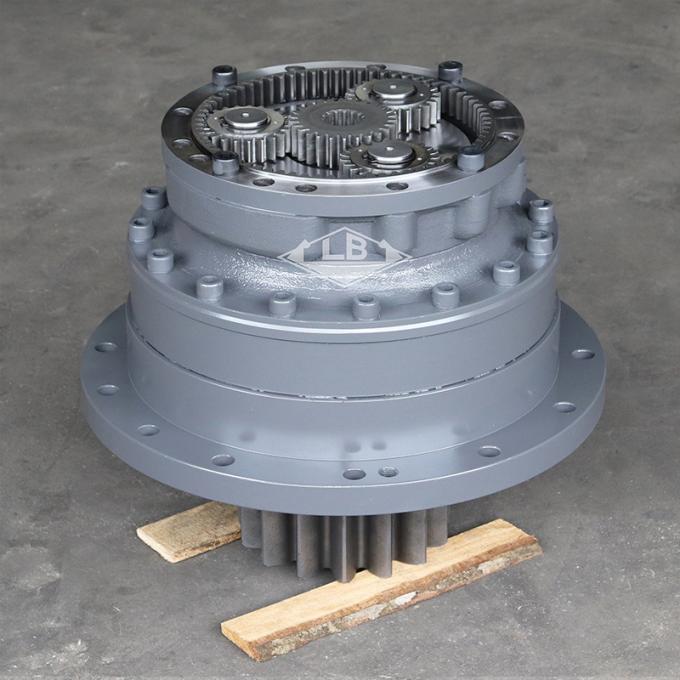

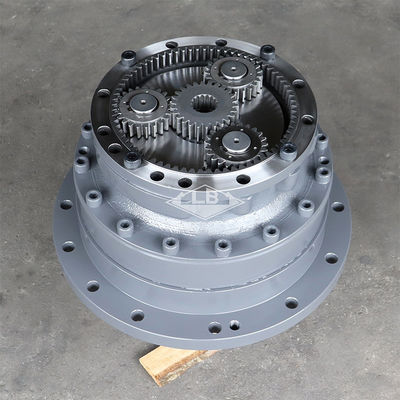

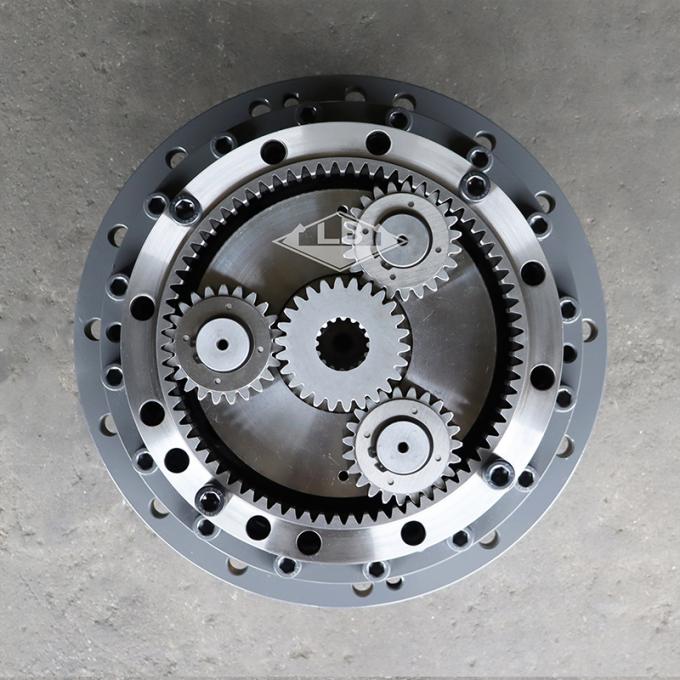

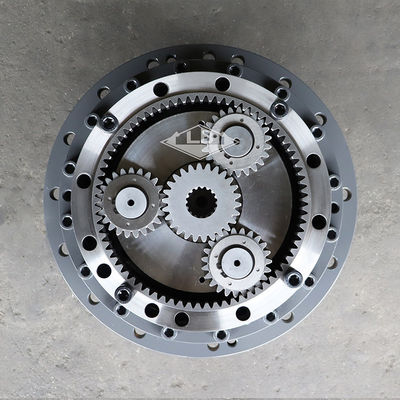

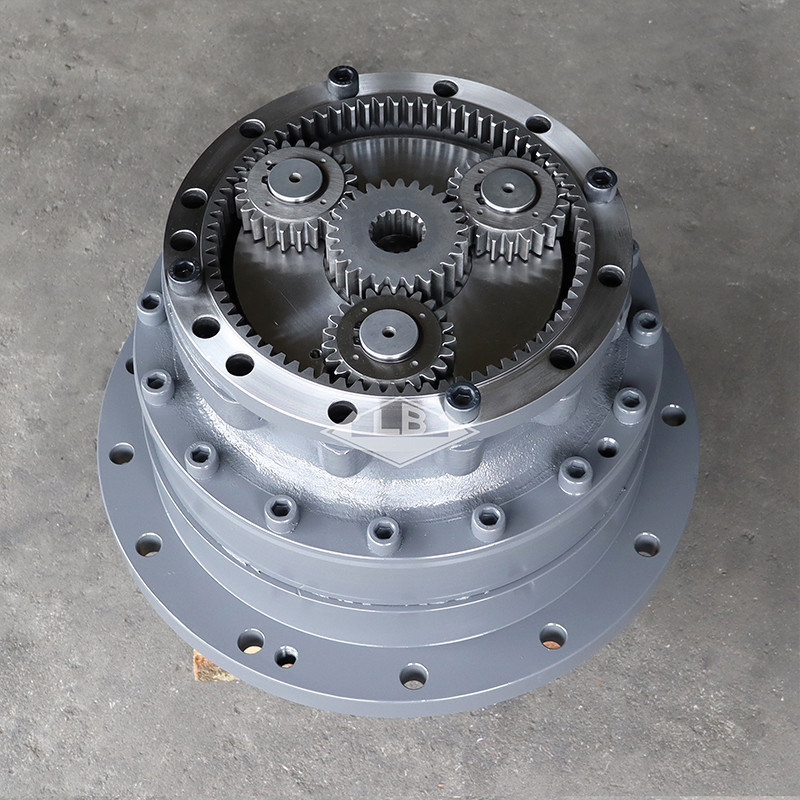

SA7118-38100 VOE14542165 VOLVO EC290 swing gearbox
PRODUCT PARAMETERS
| Part name | EC290B EC290C Swing gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | SA7118-38100 VOE14542165 | |||||
| NO.1 sun gear spline teeth | 16 splines | |||||
| Swing pinion shaft teeth | 15 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 180KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group Swing gearbox:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14542165 | [1] | Swing gearbox | ||
| 1. | VOE14722461 | [1] | Draining valve | |
| 2. | SA1036-00590 | [1] | Sun gear | NO 1 |
| 3. | SA1036-00750 | [12] | Bolt | SER NO 10001-11003 SER NO 30001-30012 |
| VOE984368 | [12] | Hex. socket screw | SER NO 11004- SER NO 30013- | |
| 4. | VOE14518702 | [1] | Carrier | NO 2,SER NO 10320- SER NO 30001- |
| 5. | SA1036-00630 | [1] | Knob | |
| 6. | VOE14504158 | [1] | Crankshaft | |
| 7. | VOE14504159 | [1] | Bearing | |
| 8. | VOE14504160 | [1] | Bearing | |
| 9. | VOE14510173 | [3] | Pin | |
| 10. | SA7118-45221 | [3] | Planetary Gear | |
| 11. | SA7118-45260 | [6] | Washer | |
| 12. | SA9325-10012 | [3] | Spring pin | |
| 13. | VOE14504164 | [1] | Sun gear | NO 2 |
| 14. | SA7118-34480 | [1] | Washer | |
| 15. | SA7118-38400 | [1] | Planet carrier | NO 1 |
| 16. | SA7117-30230 | [3] | Needle bearing | |
| 17. | SA7118-38410 | [1] | Planet carrier | |
| 18. | SA7118-38420 | [3] | Planetary Gear | |
| 19. | SA7118-38430 | [3] | Pin | |
| 20. | SA7118-38450 | [6] | Washer | |
| 21. | SA9325-08010 | [3] | Spring pin | |
| 22. | VOE914470 | [3] | Snap ring | |
| 23. | VOE14504161 | [1] | Casing | |
| 24. | VOE14504162 | [1] | Seal | |
| 25. | [1] | Casing | ||
| 26. | VOE14540733 | [1] | Pipe | |
| 27. | SA7118-38460 | [1] | Gear | NO 1 |
| 28. | [1] | Gear | NO 2 | |
| 29. | SA7118-45380 | [4] | Pin | |
| 30. | SA9016-21820 | [16] | Bolt | SER NO 10001-11003 SER NO 30001-30012 |
| VOE984370 | [16] | Hex. socket screw | SER NO 11312- SER NO 30013- | |
| 31. | VOE949329 | [1] | Gasket | |
| 32. | SA9541-01085 | [1] | Retaining ring | |
| 100. | VOE14526227 | [1] | Overhaul kit | |
| 200. | VOE14553108 | [1] | Housing | inc 25,28,29 |
