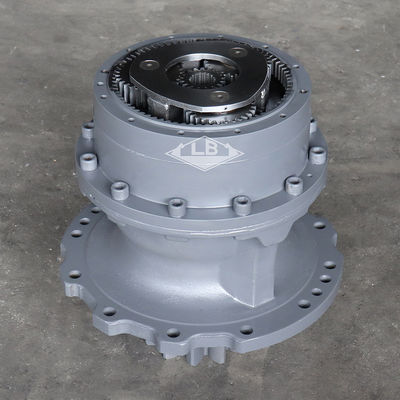

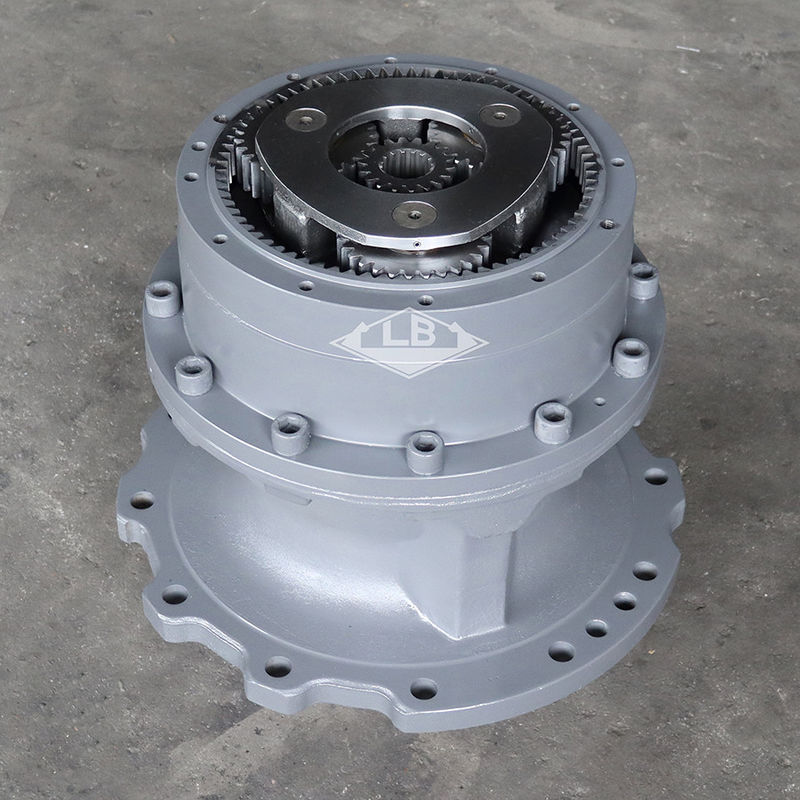

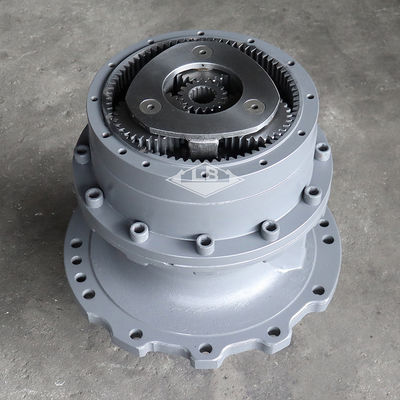

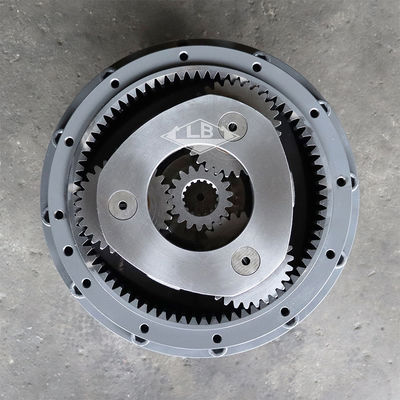

9204194 Swing Drive Gearbox ZX330-1 ZX330-3G SWING DEVICE
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| High Light: | 9204194 swing drive gearbox,swing drive gearbox for ZX330-1,ZX330-3G swing motor gearbox |
||
|---|---|---|---|
Product Description
ZX330-1 ZX330-3G SWING DEVICE 9204194 SWING GEARBOX
PRODUCT PARAMETERS
| Part name | ZX330-1 ZX330-3G swing gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9204194 | |||||
| NO.1 sun gear spline teeth | ||||||
| Swing pinion shaft teeth | ||||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | ||||||
| MOQ | 1 pc | |||||
Product Descriptio
Parts on group SWING DEVICE:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | 2044704 | [1] | SHAFT;PROP. | |
| 02. | 3088071 | [1] | SLEEVE | |
| 03. | 4412650 | [1] | O-RING | |
| 04. | 4430716 | [1] | BRG.;ROL. | |
| 05. | 4430715 | [1] | SEAL;OIL | |
| 06. | 1027932 | [1] | HOUSING | |
| 07. | 4402481 | [1] | BRG.;ROL. | |
| 08. | 3088070 | [1] | NUT | |
| 09. | 4430563 | [1] | PLATE;LOCK | |
| 11. | 2044703 | [1] | CARRIER | |
| 13. | 3088069 | [3] | GEAR;PLANETARY | |
| 14. | 4445254 | [6] | BRG.;NEEDLE | |
| 15. | 4430663 | [6] | PLATE;THRUST | Y 4644567 |
| 15. | 4644567 | [6] | PLATE;THRUST | |
| 16. | 4430714 | [3] | PIN | |
| 17. | 4404947 | [3] | PIN;SPRING | |
| 18. | 3075692 | [1] | GEAR;SUN | |
| 19. | J901016 | [2] | BOLT | |
| 20. | 1027953 | [1] | GEAR;RING | |
| 21. | M342050 | [12] | BOLT;SOCKET | |
| 22. | 4194454 | [2] | PLATE;THRUST | |
| 23. | 1027952 | [1] | CARRIER | |
| 24. | 3088063 | [3] | GEAR;PLANETARY | |
| 25. | 4190117 | [3] | BRG.;NEEDLE | |
| 26. | 4430667 | [6] | PLATE;THRUST | |
| 27. | 4144558 | [3] | PIN | |
| 28. | 4144525 | [3] | PIN;SPRING | |
| 30. | 3088062 | [1] | GEAR;SUN | |
| 32. | 3088126 | [1] | PIPE | |
| 35. | 4445354 | [2] | PLUG | |
| 36. | 94-2012 | [1] | PLUG | |
| 51. | 3080001 | [1] | PACKING | (for transportation) |
| 52. | 3080000 | [1] | COVER | (for transportation) |
| 53. | M341228 | [4] | BOLT;SOCKET | I 4614096 |
| 53. | 4614096 | [4] | BOLT;SOCKET | (for transportation) |
| 100. | 4419718 | [1] | MOTOR;OIL | |
| 101. | M341228 | [12] | BOLT;SOCKET | |
| 101. | 4614096 | [12] | BOLT;SOCKET | |
| 102. | 959499 | [1] | RING;RETAINING | |
| 104. | 4264452 | [1] | PIPE | |
| 105. | 3074223 | [1] | GAUGE;LEVEL | |
| 106. | 4388529 | [1] | PIPE | |
| 107. | 4343365 | [1] | CAP | |
| 108. | 3053093 | [1] | NAME-PLATE | |
| 109. | M492564 | [2] | SCREW;DRIVE | |
| 200. | 9204194 | [1] | SWING DEVICE | (WITHOUT MOTOR) |
