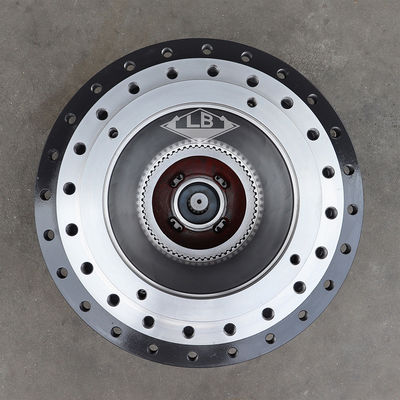

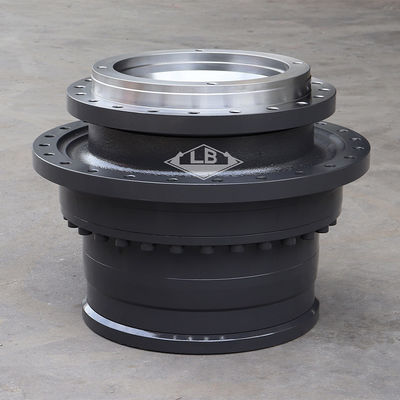

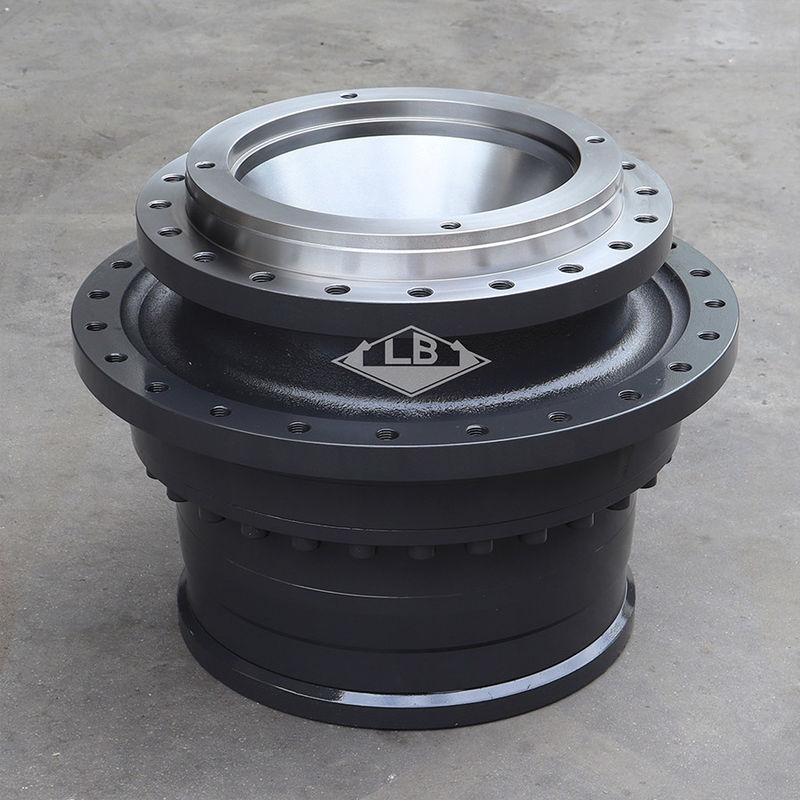

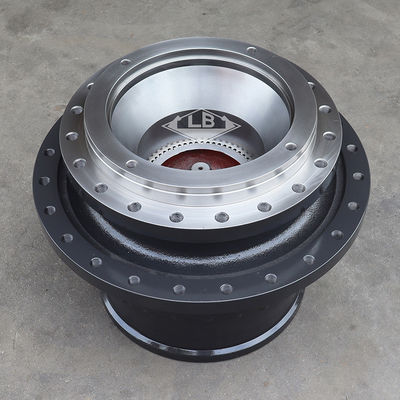

9251680 9263595 9186918 9203565 ZX450 Travel Gearbox ZX450-3 ZX470-3 Travel Reduction Gear
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| High Light: | 9203565 travel gear box,ZX450 travel gear box,ZX470-3 Travel reduction gear |
||
|---|---|---|---|
Product Description
ZX450-3 ZX470-3 Travel reduction gear 9251680 9263595 9186918 9203565 ZX450 Travel gearbox
PRODUCT PARAMETERS
| Part name | ZX450 ZX470 Travel gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9251680 9263595 9186918 9203565 | |||||
| Frame holes | 20 | |||||
| Sprocket holes | 24 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 460KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group TRAVEL DEVICE (STD. TRACK, LC TRACK):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00-57. | 9186918 | [2] | TRAVEL DEVICE | I 9203565 |
| (for assembly of machine) | ||||
| 00-57. | 9203565 | [2] | TRAVEL DEVICE | |
| (for transportation) | ||||
| 00. | 4431549 | [1] | MOTOR;OIL | I 4481832 |
| 00. | 4481832 | [1] | MOTOR;OIL | I 4637796 |
| 00. | 4637796 | [1] | MOTOR;OIL | |
| 02. | 1027942 | [1] | HOUSING | |
| 03. | 4344155 | [1] | SEAL;GROUP | |
| 05. | 1015882 | [1] | DRUM | |
| 06. | 1010956 | [1] | SPROCKET | |
| 07. | 4200411 | [2] | BRG.;ROL. | |
| 08. | J932270 | [24] | BOLT | |
| 09. | A590922 | [24] | WASHER;SPRING | |
| 10. | 3043140 | [1] | NUT | |
| 11. | 3043141 | [1] | PLATE;LOCK | |
| 12. | J901222 | [2] | BOLT | |
| 13. | 1015883 | [1] | CARRIER | |
| 14. | 3053195 | [4] | GEAR;PLANETARY | |
| 15. | 4452484 | [8] | BRG.;NEEDLE | |
| 16. | 4219595 | [8] | PLATE;THRUST | |
| 17. | 4263903 | [4] | PIN | |
| 18. | 4207947 | [4] | PIN;SPRING | |
| 19. | 3053786 | [1] | GEAR;SUN | |
| 22. | 4203187 | [1] | O-RING | |
| 23. | 1018360 | [1] | GEAR;RING | |
| 24. | J931845 | [30] | BOLT | |
| 27. | 1015523 | [1] | CARRIER | |
| 28. | 4263905 | [2] | SPACER | |
| 29. | 3053194 | [3] | GEAR;PLANETARY | |
| 30. | 4452483 | [3] | BRG.;NEEDLE | |
| 31. | 4201968 | [6] | PLATE;THRUST | |
| 32. | 4263902 | [3] | PIN | |
| 33. | 4203180 | [3] | PIN;SPRING | |
| 34. | 3053785 | [1] | GEAR;SUN | |
| 35. | 1015505 | [1] | CARRIER | |
| 37. | 3053098 | [3] | GEAR;PLANETARY | |
| 38. | 4452480 | [3] | BRG.;NEEDLE | |
| 39. | 4269295 | [6] | PLATE;THRUST | |
| 40. | 4263901 | [3] | PIN | |
| 41. | 4222030 | [3] | PIN;SPRING | |
| 42. | 2044685 | [1] | SHAFT;PROP. | |
| 43. | A590918 | [4] | WASHER;SPRING | |
| 44. | 4279343 | [3] | PLUG | |
| 46. | 4288767 | [1] | PIN;STOPPER | |
| 49. | J911860 | [4] | BOLT | |
| 50. | 4274541 | [1] | BRG.;BALL | |
| 51. | 991725 | [1] | RING;RETAINING | |
| 52. | 3053559 | [1] | NAME-PLATE | |
| 53. | M492564 | [2] | SCREW;DRIVE | |
| 55. | 4271596 | [1] | O-RING | |
| 56. | 1023348 | [1] | COVER | |
| 57. | 4373463 | [16] | BOLT;SHOE | |
| 101. | J932200 | [40] | BOLT | |
| 102. | 4089822 | [40] | WASHER |
