Product Details:

Get Best Price Contact Now

Detail Information
High Light:

207-27-00580 travel gear box

,

PC300-8MO travel gear box

,

PC350-8MO Final drive

Product Description

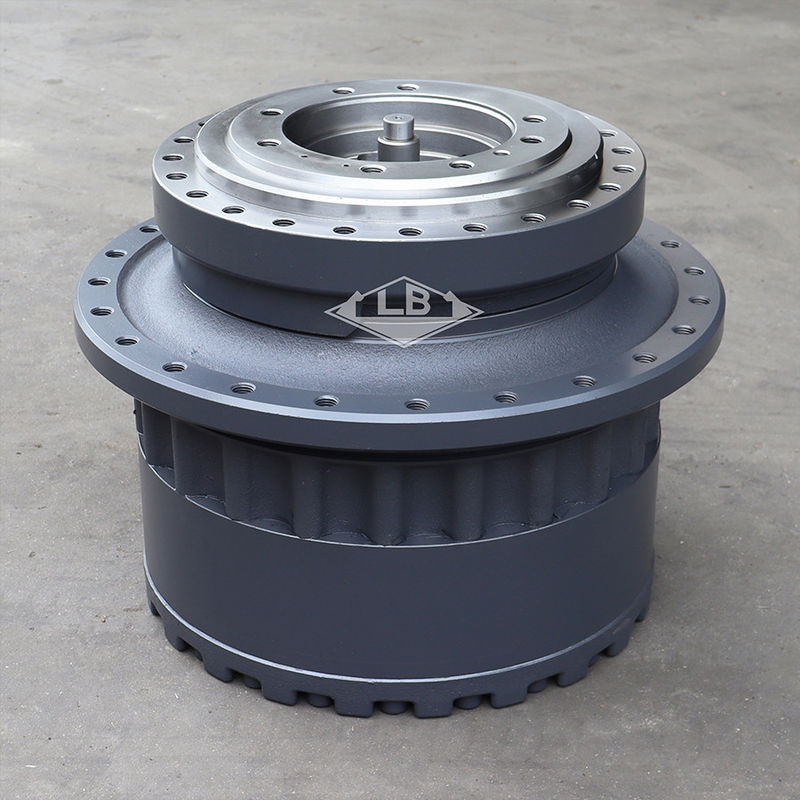

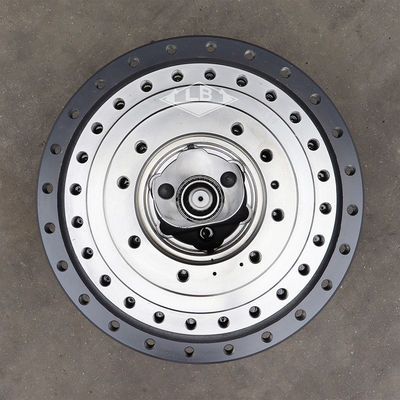

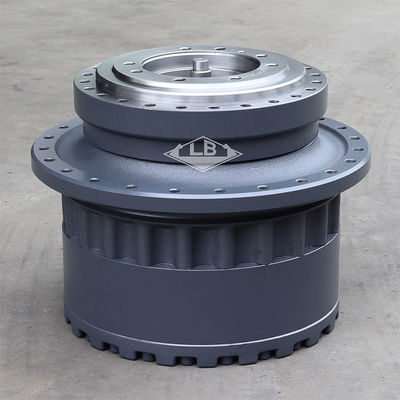

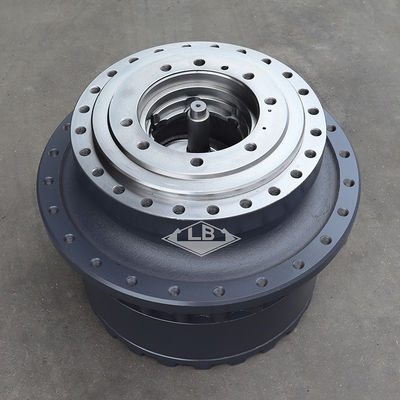

PC300-8MO PC350-8MO Final drive 207-27-00580 207-27-00590 PC300-8MO Travel gearbox



PRODUCT PARAMETERS
Part name PC300-8MO PC350-8MO Travel gearbox
Equipment Apply to KOMASTU EXCAVATOR
Part no. 207-27-00580 207-27-00590
Frame holes 24
Sprocket holes 24
Item condition New
Logo LB
Gross weight 450KG
MOQ 1 pc


Product Description

PC300-8 MO

PC300-8 MO(3)PC300-8 MO

Parts on group :

PC300-8MO

Pos. Part No Qty Parts name Comments
https://   207-27-00580   [1]   Final Drive Assembly Komatsu China
    ["SN: 80001-UP"] |$0.
    207-27-00510   [1]   Floating Seal Assembly Komatsu China
    ["SN: 80001-UP"] |$1.
   3.   207-27-72290   [1]   Hub Komatsu China
    ["SN: 80001-UP"]
   4.   207-27-72220   [2]   Bearing Komatsu China
    ["SN: 80001-UP"]
   5.   207-27-52350   [1]   O-ring Komatsu China 0.02 kg.
    ["SN: 80001-UP"]
   6.   207-27-72260   [1]   Lock Komatsu China
    ["SN: 80001-UP"]
   7.   207-27-72250   [1]   Nut, Lock Komatsu China
    ["SN: 80001-UP"]
   8.   01010-81020   [2]   Bolt Komatsu 0.161 kg.
    ["SN: 80001-UP"] analogs:["801014093", "0101051020", "801015108"]
   9.   207-27-72170   [1]   Carrier Komatsu China
    ["SN: 80001-UP"]
   10.   207-27-72140   [4]   Gear Komatsu 0.000 kg.
    ["SN: 80001-UP"]
   11.   207-27-72210   [4]   Bearing Komatsu China
    ["SN: 80001-UP"]
   12.   21M-27-11260   [8]   Washer, Thrust Komatsu OEM 0.24 kg.
    ["SN: 80001-UP"]
   13.   208-27-71250   [4]   Pin Komatsu OEM 2.16 kg.
    ["SN: 80001-UP"]
   14.   20Y-27-21290   [4]   Pin Komatsu OEM 0.03 kg.
    ["SN: 80001-UP"]
   15.   20Y-27-13310   [1]   Washer, Thrust Komatsu China 0.08 kg.
    ["SN: 80001-UP"]
   16.   207-27-72130   [1]   Gear Komatsu 0.000 kg.
    ["SN: 80001-UP"]
   17.   207-27-72150   [1]   Gear, Ring Komatsu 0.000 kg.
    ["SN: 80001-UP"]
   18.   207-27-72240   [1]   Washer, Thrust Komatsu China
    ["SN: 80001-UP"]
   19.   207-27-72160   [1]   Carrier Komatsu China
    ["SN: 80001-UP"]
   20.   207-27-72120   [3]   Gear Komatsu 0.000 kg.
    ["SN: 80001-UP"]
   21.   22U-26-21320   [3]   Bearing Komatsu 1.1 kg.
    ["SN: 80001-UP"]
   22.   206-26-71520   [6]   Washer, Thrust Komatsu 0.1 kg.
    ["SN: 80001-UP"]
   23.   207-27-72230   [3]   Pin Komatsu China
    ["SN: 80001-UP"]
   24.   20Y-27-21280   [3]   Pin Komatsu China 0.01 kg.
    ["SN: 80001-UP"]
   25.   207-27-72110   [1]   Shaft Komatsu 0.000 kg.
    ["SN: 80001-UP"]
   26.   20Y-27-11250   [1]   Spacer Komatsu OEM 0.044 kg.
    ["SN: 80001-UP"] analogs:["2052771570"]
   27.   04260-01905   [1]   Ball Komatsu OEM 0.029 kg.
    ["SN: 80001-UP"]
   28.   207-27-72180   [1]   Cover Komatsu China
    ["SN: 80001-UP"]
   29.   01011-61890   [22]   Bolt Komatsu China
    ["SN: 80001-UP"] analogs:["0101131890", "0101151890", "0101181890"]
   30.   01643-31845   [22]   Washer Komatsu China 0.02 kg.
    ["SN: 80001-UP"] analogs:["0164321845", "R0164331845"]
   31.   07049-01215   [2]   Plug Komatsu 0.001 kg.
    ["SN: 80001-UP"]
   32.   07044-12412   [3]   Plug Komatsu 0.09 kg.
    ["SN: 80001-UP"] analogs:["0704402412", "R0704412412"]
   33.   07002-02434   [3]   O-ring Komatsu China 0.01 kg.
    ["SN: 80001-UP"] analogs:["0700212434", "0700213434"]
   34.   207-27-72270   [1]   Sprocket Komatsu 0.000 kg.
    ["SN: 80001-UP"]
   35.   207-27-51311   [24]   Bolt Komatsu China 0.222 kg.
    ["SN: 80001-UP"] analogs:["2072751310", "20727K1120", "20727K1130"]
