Product Details:

Get Best Price Contact Now

Detail Information
High Light:

20Y-27-00301 travel gear box

,

PC200-7 travel gear box

,

PC200-7 Final drive

Product Description

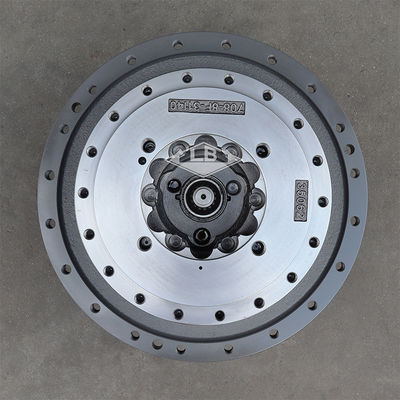

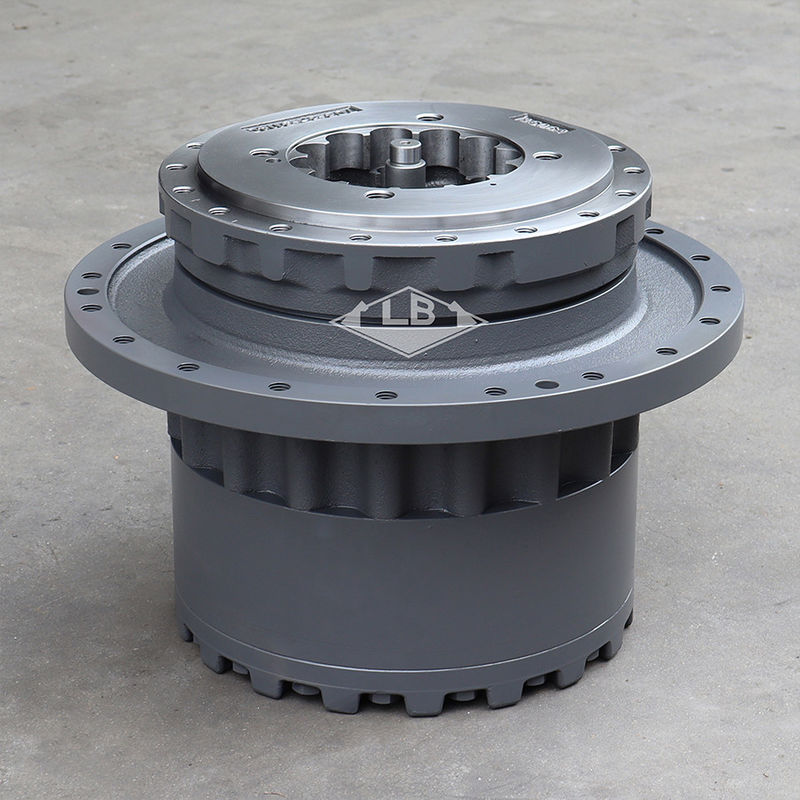

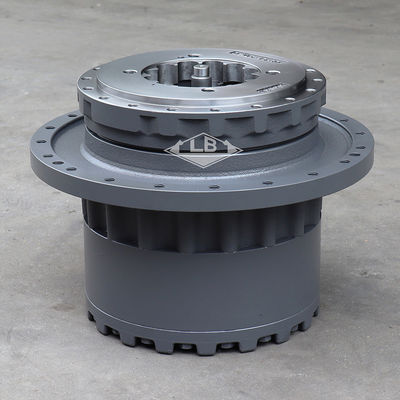

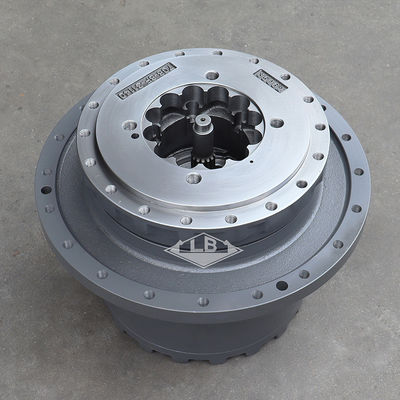

PC200-7 Final drive 20Y-27-00300 20Y-27-00301 PC200-7 Travel gearbox





PRODUCT PARAMETERS
Part name PC200-7 Travel gearbox
Equipment Apply to KOMATSU EXCAVATOR
Part no. 20Y-27-00300  20Y-27-00301
Frame holes 18
Sprocket holes 20
Item condition New
Logo LB
Gross weight 265KG
MOQ 1 pc


Product Description

PC200-7PC200-7(4)

Parts on group :

PC200-7

Pos. Part No Qty Parts name Comments
https://   20Y-27-00301   [2]   FINAL DRIVE ASSY Komatsu 394 kg.
    ["SN: 202656-203012"] analogs:["2062700300", "2062700421", "2062700301", "20Y2700360", "20Y2700352", "20Y2700361", "20Y2700351", "20Y2700432", "20Y2700300", "20Y2700440", "20Y2700441", "2062700302", "2062700422", "2062700310", "2062700311", "20Y2700430", "2062700423", "2062700312"] |$1.
    20Y-27-00300   [2]   FINAL DRIVE ASSY Komatsu 394 kg.
    ["SN: 200001-202655"] analogs:["2062700300", "2062700421", "2062700301", "20Y2700360", "20Y2700352", "20Y2700361", "20Y2700351", "20Y2700432", "20Y2700440", "20Y2700301", "20Y2700441", "2062700302", "2062700422", "2062700310", "2062700311", "20Y2700430", "2062700423", "2062700312"] |$2.
   1.   708-8F-00171   [1]   MOTOR ASSY Komatsu OEM 107.801 kg.
    ["SN: 202656-203012"] analogs:["7088F00170"]
   1.   708-8F-00170   [1]   MOTOR ASSY Komatsu OEM 107.801 kg.
    ["SN: 200001-202655"] analogs:["7088F00171"]
    150-27-00330   [1]   FLOATING SEAL ASSY Komatsu China 2.99 kg.
    ["SN: 200001-@"] analogs:["1502700029", "1502700410"] |$7.
2.   [2]   RING Komatsu China
    ["SN: 200001-@"]
   4.   20Y-27-31220   [1]   HUB Komatsu 80 kg.
    ["SN: 200001-203012"]
   5.   20Y-27-22230   [2]   BEARING Komatsu 4.6 kg.
    ["SN: 200001-203012"]
   6.   20Y-27-22280   [1]   O-RING Komatsu China 0.02 kg.
    ["SN: 200001-203012"]
   7.   20Y-27-22261   [1]   LOCK Komatsu 5.22 kg.
    ["SN: 200001-@"]
   8.   20Y-27-22270   [1]   LOCK Komatsu 0.07 kg.
    ["SN: 200001-203012"]
   9.   01010-81020   [2]   BOLT Komatsu 0.161 kg.
    ["SN: 200001-@"] analogs:["801014093", "0101051020", "801015108"]
   10.   20Y-27-22170   [1]   CARRIER Komatsu China 20.4 kg.
    ["SN: 200001-@"]
   11.   20Y-27-22140   [4]   GEAR Komatsu China 3.72 kg.
    ["SN: 200001-@"]
   12.   20Y-27-22220   [4]   BEARING Komatsu China 0.3 kg.
    ["SN: 200001-@"] analogs:["20Y2721270"]
   13.   20Y-27-21250   [8]   WASHER Komatsu China 0.03 kg.
    ["SN: 200001-@"]
   14.   20Y-27-21230   [4]   PIN Komatsu 1.54 kg.
    ["SN: 200001-203012"]
   15.   20Y-27-21290   [4]   PIN Komatsu OEM 0.03 kg.
    ["SN: 200001-@"]
   16.   20Y-27-13310   [1]   WASHER Komatsu China 0.08 kg.
    ["SN: 200001-@"]
   17.   20Y-27-22130   [1]   GEAR Komatsu China 1.75 kg.
    ["SN: 200001-@"]
   18.   20Y-27-22240   [1]   WASHER Komatsu China 0.03 kg.
    ["SN: 200001-@"]
   19.   20Y-27-22150   [1]   GEAR Komatsu 43.7 kg.
    ["SN: 200001-203012"] analogs:["20Y2722151"]
   20.   20Y-27-22160   [1]   CARRIER Komatsu OEM 6 kg.
    ["SN: 200001-203012"]
   21.   20Y-27-22120   [3]   GEAR Komatsu China 2.5 kg.
    ["SN: 200001-@"]
   22.   20Y-27-22210   [3]   BEARING Komatsu China 0.12 kg.
    ["SN: 200001-@"] analogs:["20Y2721260"]
   23.   20Y-27-21240   [6]   WASHER Komatsu China 0.02 kg.
    ["SN: 200001-@"]
   24.   20Y-27-21220   [3]   PIN Komatsu China 0.411 kg.
    ["SN: 200001-@"]
   25.   20Y-27-21280   [3]   PIN Komatsu China 0.01 kg.
    ["SN: 200001-@"]
   26.   20Y-27-31210   [1]   SHAFT Komatsu China 1.5 kg.
    ["SN: 200001-203012"]
   27.   20Y-27-21310   [1]   WASHER Komatsu China 0.17 kg.
    ["SN: 200001-@"]
   28.   20Y-27-31230   [1]   COVER Komatsu 18 kg.
    ["SN: 200001-203012"]
   29.   20Y-27-22250   [1]   BUTTON Komatsu China 0.05 kg.
    ["SN: 200001-@"]
   30.   20Y-27-13281   [18]   BOLT Komatsu 0.31 kg.
    ["SN: 200001-203012"]
   31.   01643-31645   [18]   WASHER Komatsu 0.072 kg.
    ["SN: 200001-203012"] analogs:["802170005", "0164301645"]
   32.   07049-01012   [2]   PLUG Komatsu 0.001 kg.
    ["SN: 200001-@"]
   33.   07044-12412   [3]   PLUG Komatsu 0.09 kg.
    ["SN: 200001-203012"] analogs:["0704402412", "R0704412412"]
   34.   07002-12434   [3]   O-RING Komatsu China 0.01 kg.
    ["SN: 200001-@"] analogs:["0700202434", "0700213434"]
   35.   20Y-27-11582   [1]   SPROCKET Komatsu China 36.2 kg.
    ["SN: 200001-@"] analogs:["20Y2711581", "20Y27K1110", "20Y2777110"]
   36.   20Y-27-11561   [20]   BOLT Komatsu China 0.14 kg.
    ["SN: 200001-@"]
