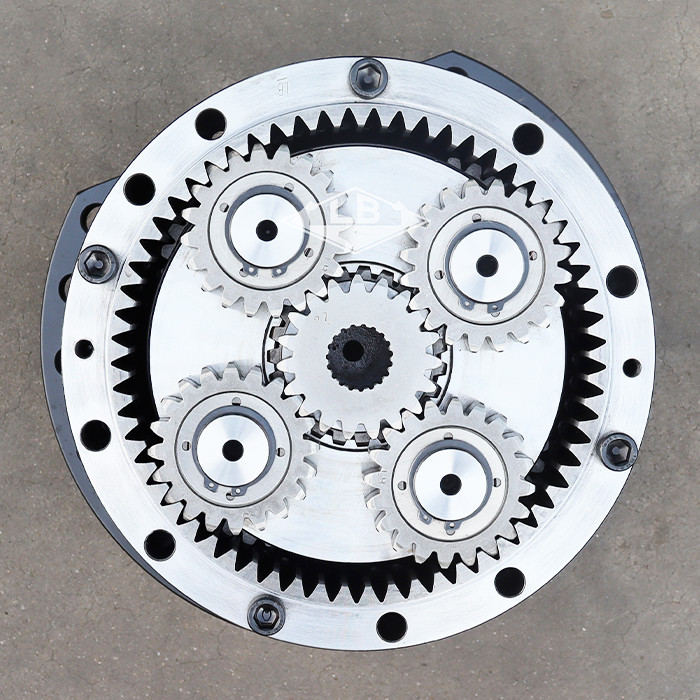

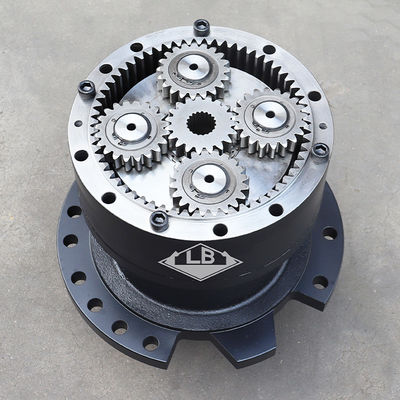

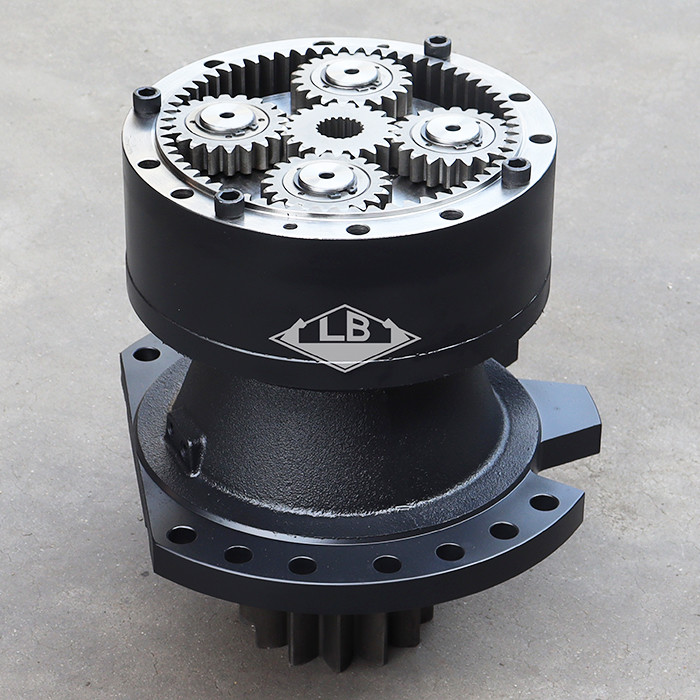

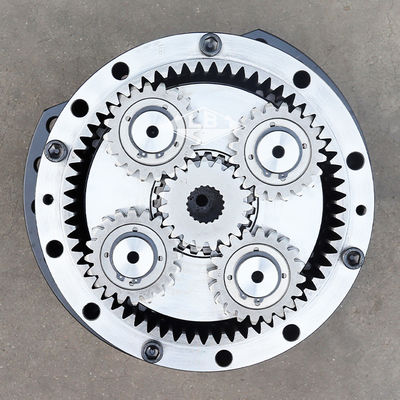

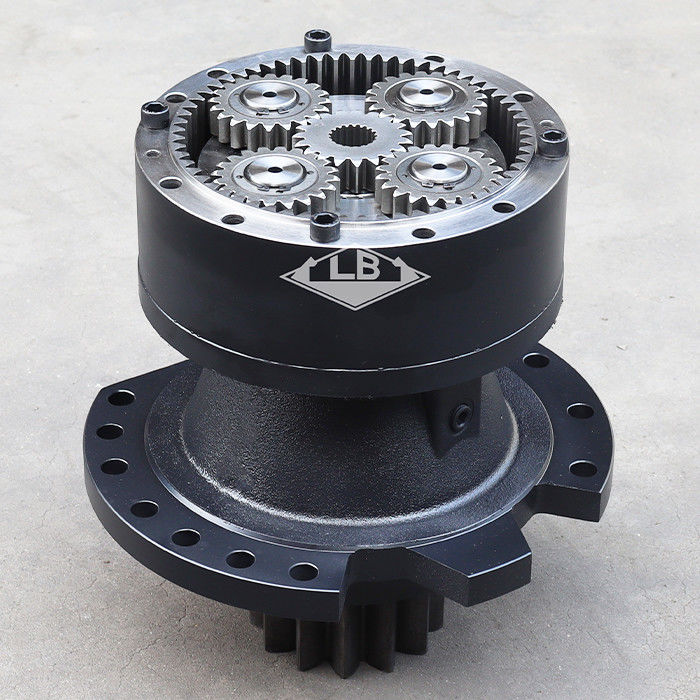

SK200-8HD SK210-9 Swing Gear Reduction Unit YN32W00025F1 SK210-9 SWING GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
Product Description
PRODUCT PARAMETERS
| Part name | SK210-9 swing gearbox | |||||
| Equipment | Apply to Kobelco EXCAVATOR | |||||
| Part no. | YN32W00025F1 | |||||
| NO.1 sun gear spline teeth | 19 splines | |||||
| Swing pinion shaft teeth | 13T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 160kg | |||||
| MOQ | 1 pc | |||||
Product Descriptio
Parts on group (SK210-9) - ACERA MARK 9 EXCAVATOR - TIER 4, ASN YQ13U5200 - (10/2012 -) (1/03-12/13):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 11124834 | [13] | BOLT,Hex, M20 x 55mm, Cl 10.9 | LEC M20 X 55 FULL 10.9 DAC |
| 2. | 87643225 | [2] | PLUG | SM 10.0mm Slotted Plastic, (YN64H01391D1) Superseded by part number: YN64H01391D1 |
| 3. | 87369427 | [1] | LEVEL GAUGE | SM 385.5mm Long (15-11/64 in), (YN32W01101D1) Superseded by part number: YN32W01101D1 |
| 4. | YN32W01114D4 | [1] | RIGID TUBE | SM 262mm Long (10-5/16 in) |
| 5. | 84189984 | [1] | RIGID TUBE,20.80 mm ID x 27.20 mm OD x 250 mm L | SM DIA 27.2 Superseded by part number: YN32W01122D1 |
| 6. | 87369430 | [1] | PLUG | SM Cap, 3/4" PT, (ZE91T12000) Superseded by part number: ZE91T12000 |
| 7. | YN15V00054F1 | [1] | HYDRAULIC MOTOR | SM Swing Hydraulic Motor Assy |
| 7-1. | YN15V00055F1 | [1] | HYDRAULIC MOTOR | SM Assy |
| 7-2. | YN32W00025F1 | [1] | GEAR REDUCTION UNIT | SM Swing Gear Reduction Unit |
Parts on group (SK210-9) - ACERA MARK 9 EXCAVATOR - TIER 4, ASN YQ13U5200 - (10/2012 -) (1/03-12/13):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | YN32W01125P1 | [1] | GEAR | SM Shaft |
| 2. | YN32W01136P1 | [1] | GEAR | SM |
| 3. | YN32W01135P1 | [3] | GEAR | SM Pinion |
| 4. | YN32W01126P1 | [1] | GEAR | SM |
| 5. | YN32W01143P1 | [4] | GEAR | SM |
| 6. | YN32W01127P1 | [1] | GEAR | SM Ring |
| 7. | YN32W01123F1 | [1] | SPIDER | KOB Gear, Incl 7-1 - 7-2 |
| 7-1. | NSS | [1] | NOT SOLD SEPARAT | CON Spider, Incl in 7 |
| 7-2. | NSS | [3] | NOT SOLD SEPARAT | CON Shaft, Incl in 7 |
| 8. | YN32W01130P1 | [1] | PLANET CARRIER | SM |
| 9. | YN32W01131P1 | [4] | SHAFT | SM |
| 10. | YN32W01030P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: 25Z804D18 |
| 11. | YN32W01029P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: R25P0047D9 |
| 12. | YN32W01060P1 | [1] | OIL SEAL | SM |
| 13. | YN32W01132P1 | [1] | BOX | SM |
| 14. | YN32W01026P1 | [3] | THRUST WASHER | KOB |
| 15. | YN32W01028P1 | [3] | THRUST WASHER | KOB |
| 16. | YN32W01022P1 | [102] | ROLLER | KOB |
| 17. | YN32W01072P1 | [4] | NEEDLE BEARING | SM |
| 18. | YN32W01063P1 | [8] | WASHER | SM |
| 19. | 11068370 | [1] | SNAP RING | MKT Retaining, ID 32.20 x OD 35 x Th 1.6mm Superseded by part number: 11068375 |
| 20. | ZR16X09000 | [1] | RING | KOB Retaining, ID 84.50 x OD 108 x 3.0mm |
| 21. | YN32W01133P1 | [1] | SLEEVE | SM |
| 22. | 72210023 | [4] | PIN | SM Roll Superseded by part number: ZP26D08025 |
| 23. | 72210021 | [11] | SCREW,Hex Socket Head, M14 x 130mm | SM Screw M14x2.0x135mm, (ZS23C14130) Superseded by part number: ZS23C14130 |
| 24. | PV02B01073DB | [2] | CAP | KOB 18.4mm Plastic |
| 25. | YN32W01080D5 | [1] | RIGID TUBE | SM 1/2" PT x 112mm Long |
| 26. | ZG31U08000 | [1] | HYD CONNECTOR | SM Elbow, 90° -- 1/2" PT |
| 27. | 72210000 | [1] | PLUG | SM 1/2" PT, (ZE82T08000) Superseded by part number: ZE82T08000 |
| 28. | 72211282 | [3] | SNAP RING | SM Retaining, ID 37 x OD 40 x Th 1.8mm, (ZR16X04000) Superseded by part number: ZR16X04000 |
| 29. | YN32W01081P1 | [1] | OIL SEAL | SM |
| 30. | 72283072 | [1] | LUBE NIPPLE,67 Degree x 1/8" PT | IMO 67° x 1/8" PT, (ZG91V02000) Superseded by part number: ZG91V02000 |
| 31. | 72210250 | [1] | PLUG | IMO 1/8"PT, (ZE82T02000) Superseded by part number: ZE82T02000 |
