Product Details:

Get Best Price Contact Now

Detail Information

Product Description

PRODUCT PARAMETERS

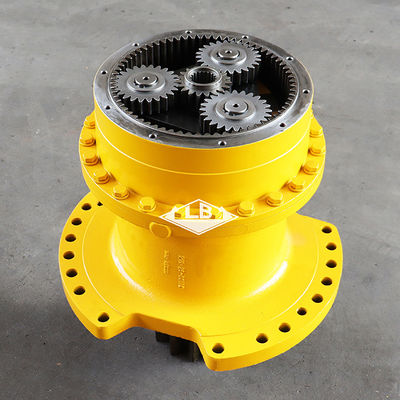

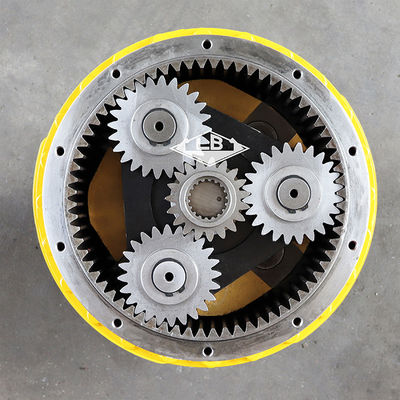

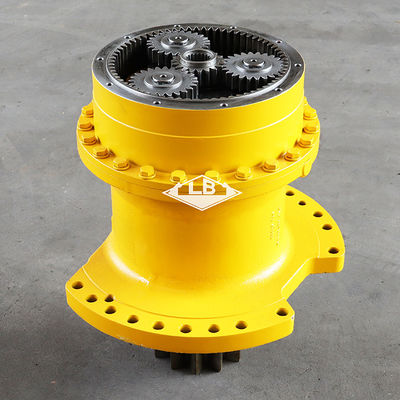

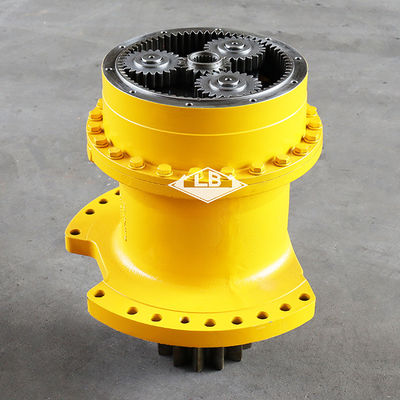

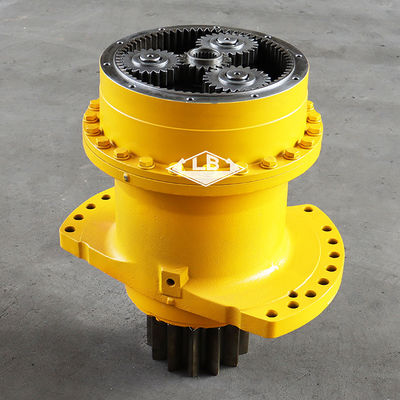

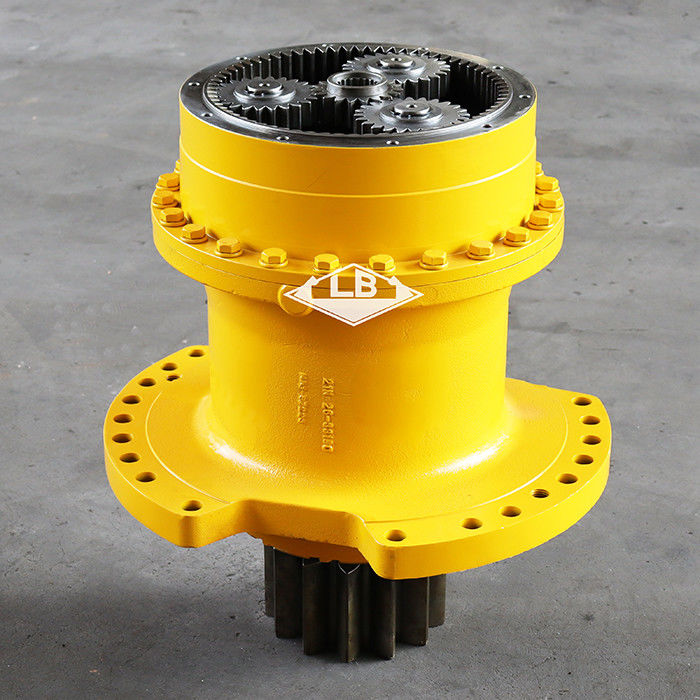

Part name
 PC1250-8 Swing gearbox
Equipment Apply to KOMATSU EXCAVATOR
Part no. 21N-26-00110 21N-26-00120 21N-26-00140
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

PC1250-8(2)PC1250-8(6)PC1250-8(4)PC1250-8(3)PC1250-8PC1250-8

Parts on group :

Pos. Part No Qty Parts name Comments

  21N-26-00110   [1]   Swing Machinery Assembly Komatsu 0.000 kg.

  ["SN: 30158-UP"] |$0.
   1.   21N-26-33190   [1]   Case Komatsu 172 kg.

  ["SN: 30158-UP"]
   2.   07049-02430   [2]   Plug Komatsu 0.003 kg.

  ["SN: 30158-UP"]
   3.   06000-23124   [1]   Bearing Komatsu 7.867 kg.

  ["SN: 30158-UP"]
   4.   21N-26-31140   [1]   Bearing Komatsu 33.1 kg.

  ["SN: 30158-UP"]
   5.   21N-26-31110   [1]   Shaft Komatsu 87 kg.

  ["SN: 30158-UP"]
   6.   208-26-61291   [1]   Seal, Oil Komatsu 0.5 kg.

  ["SN: 30158-UP"] analogs:["2082661290"]
   7.   21N-26-33230   [1]   Cover Komatsu China

  ["SN: 30158-UP"]
   8.   01010-81030   [12]   Bolt Komatsu OEM 0.03 kg.

  ["SN: 30158-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"]
   9.   01643-31032   [12]   Washer Komatsu 0.054 kg.

  ["SN: 30158-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
   10.   07000-15390   [1]   O-ring Komatsu OEM 0.05 kg.

  ["SN: 30158-UP"]
   11.   208-26-71181   [1]   Carrier Komatsu 19 kg.

  ["SN: 30158-UP"] analogs:["2082671180"]
   12.   208-26-71140   [4]   Gear Komatsu 4.72 kg.

  ["SN: 30158-UP"]
   13.   207-27-61230   [4]   Bearing Komatsu 0.65 kg.

  ["SN: 30158-UP"]
   14.   20Y-27-21250   [8]   Washer, Thrust Komatsu China 0.03 kg.

  ["SN: 30158-UP"]
   15.   207-27-61250   [4]   Pin Komatsu China 1.75 kg.

  ["SN: 30158-UP"]
   16.   20Y-27-21290   [4]   Pin Komatsu OEM 0.03 kg.

  ["SN: 30158-UP"]
   17.   208-26-71230   [1]   Plate Komatsu China

  ["SN: 30158-UP"]
   18.   205-32-51211   [1]   Bolt Komatsu 0.17 kg.

  ["SN: 30158-UP"]
   19.   208-26-71151   [1]   Gear Komatsu China

  ["SN: 30158-UP"]
   20.   01010-81645   [24]   Bolt Komatsu China 0.104 kg.

  ["SN: 30158-UP"] analogs:["0101061645", "801015187", "0101031645", "0101051645", "37A0911184", "801014184"]
   21.   01643-31645   [24]   Washer Komatsu 0.072 kg.

  ["SN: 30158-UP"] analogs:["802170005", "0164301645"]
   22.   208-26-71130   [1]   Gear Komatsu 5.1 kg.

  ["SN: 30158-UP"]
   23.   208-26-71241   [1]   Plate Komatsu 0.06 kg.

  ["SN: 30158-UP"]
   24.   208-26-71170   [1]   Carrier Komatsu 7.65 kg.

  ["SN: 30158-UP"]
   25.   207-26-71520   [3]   Gear Komatsu 2 kg.

  ["SN: 30158-UP"]
   26.   22U-26-21320   [3]   Bearing Komatsu 1.1 kg.

  ["SN: 30158-UP"]
   27.   22U-26-21240   [6]   Washer Komatsu 0.6 kg.

  ["SN: 30158-UP"]
   28.   207-26-71210   [3]   Pin Komatsu 0.66 kg.

  ["SN: 30158-UP"]
   29.   04064-04018   [6]   Ring, Snap Komatsu 0.001 kg.

  ["SN: 30158-UP"] analogs:["802250040"]
   30.   208-26-71210   [1]   Holder Komatsu 0.42 kg.

  ["SN: 30158-UP"]
   31.   04260-01270   [1]   Ball Komatsu OEM 0.009 kg.

  ["SN: 30158-UP"]
   32.   207-26-71510   [1]   Gear Komatsu OEM 1.52 kg.

  ["SN: 30158-UP"]
   33.   207-26-71261   [1]   Plate Komatsu OEM 0.15 kg.

  ["SN: 30158-UP"]
   34.   207-26-71610   [1]   Cover Komatsu China

  ["SN: 30158-UP"]
   35.   01010-81240   [10]   Bolt Komatsu 0.052 kg.

  ["SN: 30158-UP"] analogs:["801015573", "0101051240"]
   36.   01643-31232   [10]   Washer Komatsu 0.027 kg.

  ["SN: 30158-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
   37.   07042-30617   [2]   Plug, Taper Komatsu China

  ["SN: 30158-UP"]
   38.   07042-30108   [1]   Plug Komatsu 0.008 kg.

  ["SN: 30158-UP"] analogs:["0704220108"]
