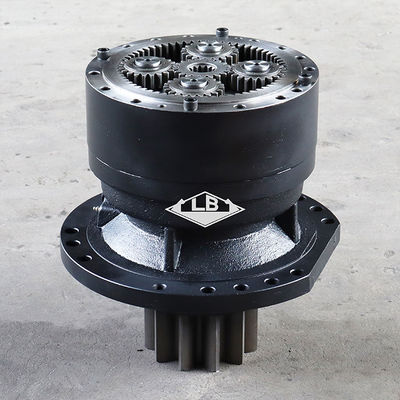

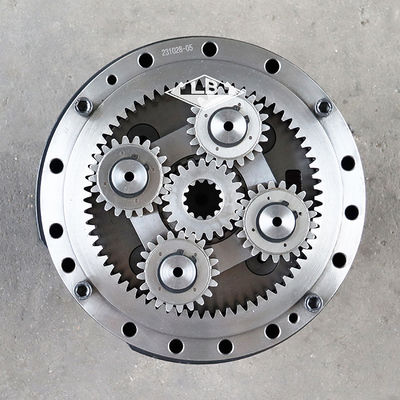

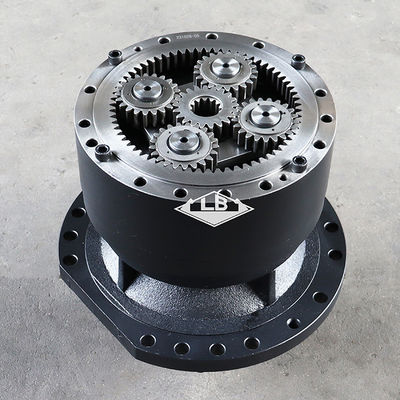

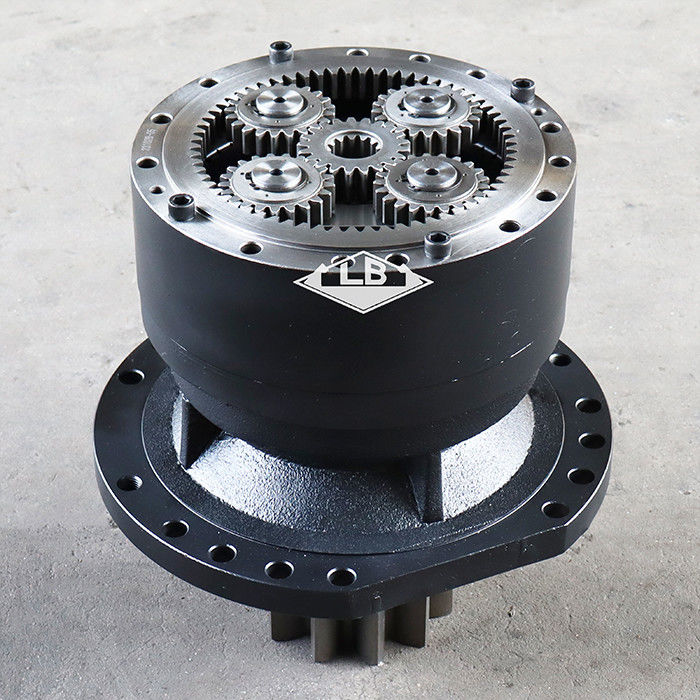

SK460-8 SK485 SWING REDUCER LS32W00012F1 SK460-8 SWING GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
Product Description
PRODUCT PARAMETERS
| Part name | SK460 SK485 swing gearbox | |||||
| Equipment | Apply to Kobelco EXCAVATOR | |||||
| Part no. | LS32W00012F1 | |||||
| NO.1 sun gear spline teeth | 13 splines | |||||
| Swing pinion shaft teeth | 11T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Descriptio
Parts on group (SK485-8) - ACERA MARK 8 EXCAVATOR - TIER 3 (NA) YS07U0701 - (8/07-12/12):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | LS32W00012F1 | [1] | HYDRAULIC EQUIPMENT | KOB Swing Reduction Assembly |
| 1. | LQ32W01038P1 | [1] | FINGER ASSY. | KOB |
| 2. | LQ32W01027P1 | [1] | SHAFT, PLANETARY CAR | KOB |
| 3. | LQ32W01011P1 | [4] | DRIVEN SPROCKET | KOB |
| 4. | LQ32W01031F1 | [1] | SPIDER | KOB |
| 5. | LQ32W01010P1 | [1] | GEAR | KOB |
| 6. | LQ32W01009P1 | [4] | DRIVEN SPROCKET | KOB |
| 7. | LQ32W01005P1 | [1] | RING GEAR | KOB |
| 8. | 2413J376 | [1] | DIFF. SPIDER | KOB |
| 9. | 2410T352 | [4] | ROLLER SHAFT | KOB |
| 10. | 2425Z540 | [4] | NEEDLE BEARING,40mm ID x 48mm OD x 25mm W | KOB |
| 11. | 2425Z541 | [4] | NEEDLE BEARING,40mm ID x 54mm OD x 50mm W | KOB |
| 12. | LQ32W01016P1 | [1] | SPHERICAL BEARING | KOB |
| 13. | LQ32W01015P1 | [1] | SPHERICAL BEARING | KOB |
| 14. | LQ32W01035P1 | [1] | OIL SEAL | KOB |
| 15. | NA | [1] | NOT SERVICED | FOR Housing |
| 16. | LC32W01033P1 | [1] | OIL SEAL | KOB |
| 17. | LQ32W01036P1 | [1] | SLEEVE | KOB |
| 18. | LQ32W01037P1 | [8] | WASHER | KOB |
| 19. | LQ32W01018P1 | [8] | WASHER | KOB Thrust |
| 20. | ZR16X04000 | [4] | RING | KOB Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 21. | ZR16X10000 | [1] | RING | KOB Retaining -- ID 94.50 x OD 119 x Th 3.0mm |
| 22. | ZP26D08032 | [4] | PIN | KOB Roll -- OD 08 x 32mm Long |
| 23. | ZS23C14150 | [16] | SCREW,Hex Socket Head, M14 x 150mm | KOB M14x2.0x150mm |
| 24. | PV02B01073DB | [2] | CAP | KOB 18.4mm Plastic |
