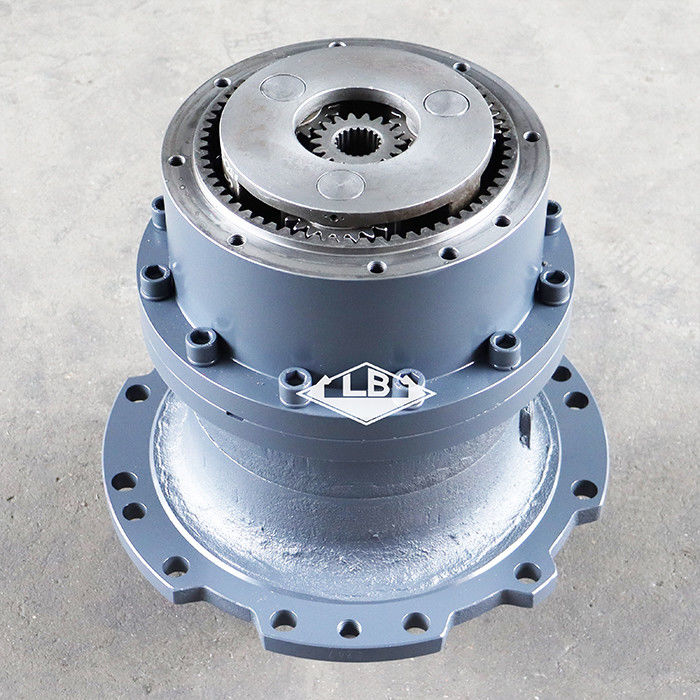

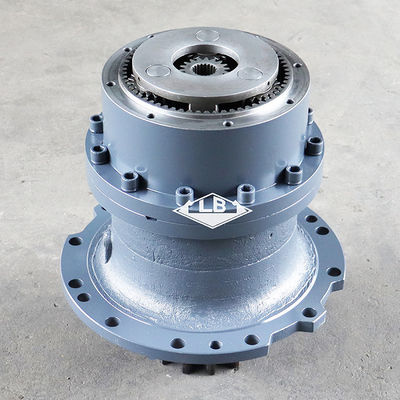

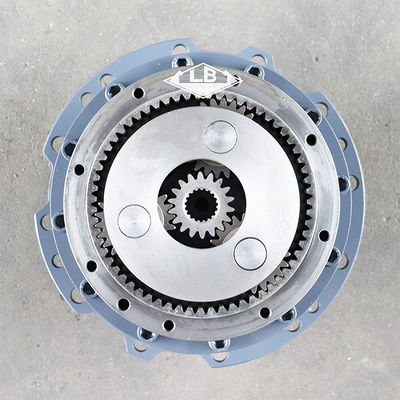

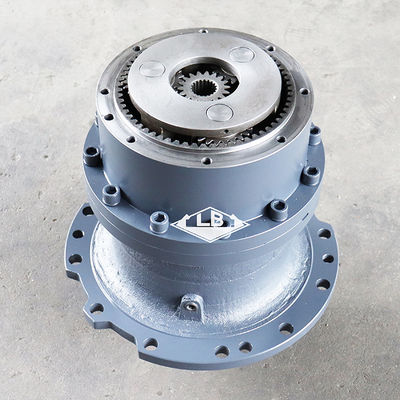

EX200-2 EX200-3 SWING DEVICE 9111266 EX200-3 SWING GEARBOX
Product Details:
Get Best Price Contact Now|
Detail Information |
Product Description
PRODUCT PARAMETERS
| Part name | EX200-2 EX200-3 swing gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9111266 | |||||
| NO.1 sun gear spline teeth | 19 splines | |||||
| Swing pinion shaft teeth | 13T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Descriptio
Parts on group SWING DEVICE:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 2027494 | [1] | SHAFT;PROP. | |
| 01. | 3045362 | [1] | SLEEVE | |
| 04. | A811120 | [1] | O-RING | |
| 05. | 4281798 | [1] | BRG.;SPH.ROL. | |
| 08. | 3060672 | [1] | COVER | |
| 09. | 4246275 | [1] | SEAL;OIL | |
| 10. | 4210325 | [1] | O-RING | |
| 12. | 1017262 | [1] | HOUSING | |
| 18. | 944690 | [1] | BRG.;ROL. | |
| 19. | 991352 | [1] | RING;RETAINING | |
| 20. | J011240 | [8] | BOLT;SEMS | |
| 23. | 1015928 | [1] | CARRIER | |
| 25. | 4176073 | [2] | PLATE;THRUST | |
| 26. | 9732075 | [3] | GEAR;PLANETARY | |
| 29. | 4513294 | [3] | PIN;SPRING | |
| 30. | 4266933 | [6] | PLATE;THRUST | |
| 31. | 4271414 | [3] | PIN | |
| 32. | 4247590 | [1] | O-RING | |
| 33. | 1013942 | [1] | GEAR;RING | |
| 35. | M341650 | [12] | BOLT;SOCKET | |
| 39. | 3045364 | [1] | GEAR;SUN | |
| 41. | 1013943 | [1] | CARRIER | |
| 42. | 3047266 | [3] | GEAR;PLANETARY | |
| 43. | 4183108 | [3] | BRG.;NEEDLE | |
| 45. | 4246249 | [3] | PIN | |
| 47. | 3047264 | [1] | GEAR;SUN | |
| 48. | 4245190 | [1] | O-RING | |
| 49. | 4269481 | [6] | PLATE;THRUST | |
| 50. | 4144020 | [3] | PIN;SPRING | |
| 54. | 425176 | [2] | CORK | |
| 55. | 8050212 | [1] | PIPE | |
| 58. | 94-2013 | [1] | PLUG | |
| 61. | 8053414 | [1] | COVER | (for transportation) |
| 62. | J011250 | [8] | BOLT;SEMS | (for transportation) |
| 63. | 94-2011 | [1] | PLUG | (for transportation) |
| 100. | 4247870 | [1] | MOTOR;OIL | |
| 102. | M341228 | [8] | BOLT;SOCKET | |
| 105. | 4264452 | [1] | PIPE | |
| 106. | 3053451 | [1] | GAUGE;LEVEL | |
| 108. | 4262343 | [1] | PIPE | |
| 109. | 4298572 | [1] | CAP | |
| 110. | 991342 | [1] | RING;RETAINING | |
| 112. | 3053093 | [1] | NAME-PLATE | |
| 113. | M492564 | [2] | SCREW;DRIVE | |
| 129. | J932060 | [12] | BOLT | |
| 130. | 4018545 | [12] | WASHER | |
| 131. | 4080398 | [2] | PIN;KNOCK | |
| 200. | 9111266 | [1] | SWING DEVICE | (WITHOUT MOTOR) |
