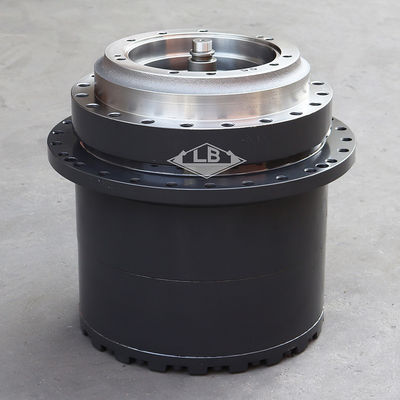

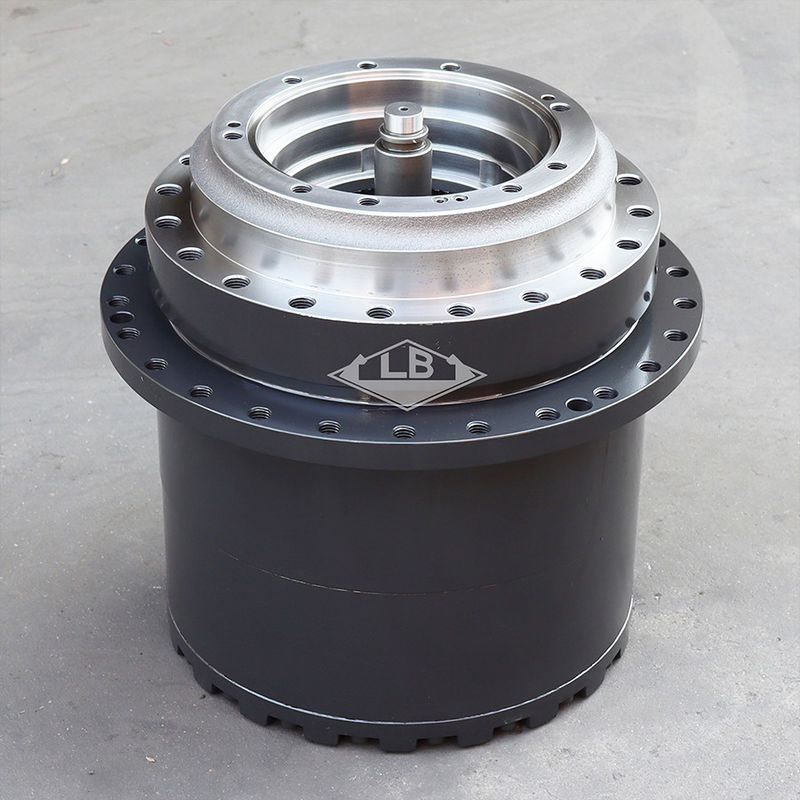

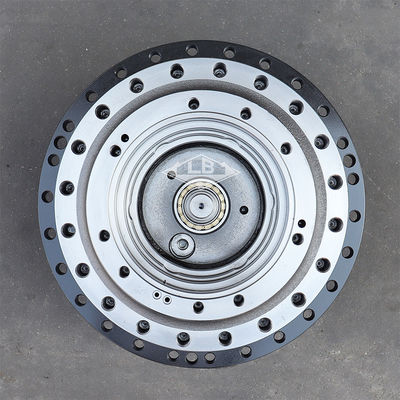

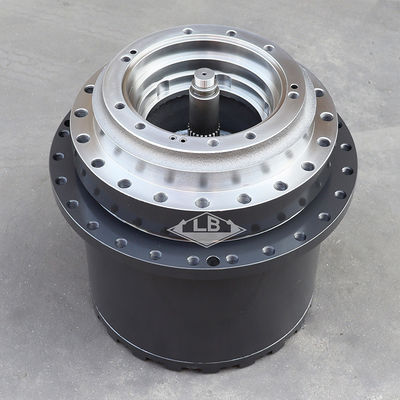

DX255LC SOLAR 255LC-V TRAVEL REDUCTION GEAR K1011413A K9005007 170402-00039 170401-00042A DX255 Travel gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
Product Description
PRODUCT PARAMETERS
| Part name | DX25LC SOLAR 255LC-V Travel gearbox | |||||
| Equipment | Apply to DOOSAN EXCAVATOR | |||||
| Part no. | K1011413A K9005007 170402-00039 170401-00042A | |||||
| Frame holes | 20 | |||||
| Sprocket holes | 26 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 268 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group DX255LC:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1011413A | [2] | TRAVEL DEVICE | 170401-00042 |
| -. | 170401-00042 | [2] | 170401-00042A | |
| -. | 170401-00042A | [2] | ||
| 1. | *NA00546 | [1] | HUB | |
| 12. | 1.540-00004 | [1] | PIECE;DISTANCE | |
| 13. | 1.430-00030 | [1] | COVER | |
| 13. | 110508-23087 | [1] | ||
| 14. | 1.114-00541 | [6] | COLLAR;THRUST | |
| 15. | 1.115-00138 | [1] | RING | |
| 17. | 1.123-00034 | [10] | PIN | |
| 19. | 1.414-00009 | [1] | COUPLING | |
| 2. | *NA01154 | [1] | ||
| 20. | 1.412-00164 | [2] | PLATE;THRUST | |
| 23. | 1.180-00355 | [1] | RING;SEAL | |
| 24. | 1.109-00146 | [2] | BEARING;ANGULAR BALL | |
| 25. | 1.109-00145 | [6] | BEARING;NEEDLE | |
| 26. | 1.180-00512 | [1] | SEAL;FLOATING | |
| 27. | 1.123-00107 | [10] | PIN;PARALLEL D12X63 | |
| 29. | S8012300 | [1] | O-RING | |
| 3. | 1.230-00054 | [1] | CARRIER | |
| 30. | 2181-1116D4 | [3] | PLUG | |
| 30. | 2181-1890D4 | [3] | PLUG | |
| 32. | S0561471 | [20] | BOLT;HEX M12X1.75X85 | |
| 32. | S2216261 | [20] | BOLT;SOCKET M12X1.75X80 | |
| 33. | S5110701 | [20] | WASHER;SPRING M12 | |
| 34. | 1.123-00026 | [3] | PIN;PARALLEL | |
| 35. | S2224471 | [10] | ..BOLT;SOCKET M8X2.5X40 | |
| 36. | S6250200 | [1] | BALL;STELL | |
| 38. | S8000181 | [3] | O-RING | |
| 39. | S8000081 | [2] | O-RING | |
| 4. | *NA00495 | [1] | ||
| 40. | S8003401 | [1] | JOINT TORIQUE | |
| 5. | 1.104-00003 | [1] | GAER;RING B | |
| 6. | 1.404-00007 | [3] | GEAR;CLUSTER | |
| 7. | 1.403-00111 | [1] | GEAR;SUN | |
| 8. | 1.404-00002 | [1] | GEAR;COUPLING | |
| 9. | 1.405-00121 | [3] | SHAFT;CLUSTER | |
| RG. | K9005007 | [1] | REDUCTION GEAR ASS'Y | 170402-00039 |
| RG. | 170402-00039 | [1] | ||
| RG1. | K9005008 | [1] | HUB ASS'Y | |
| RG1. | 900122-00134 | [1] | ||
| RG2. | K9005010 | [1] | SPINDLE ASS'Y | |
| RG3. | 1.230-00053 | [1] | CARRIER ASS'Y |
