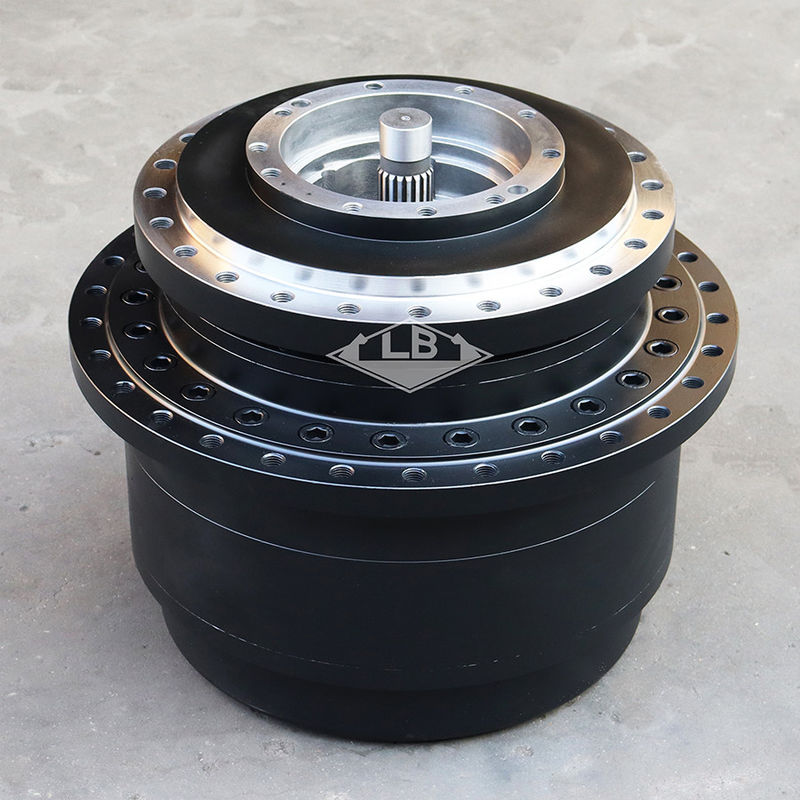

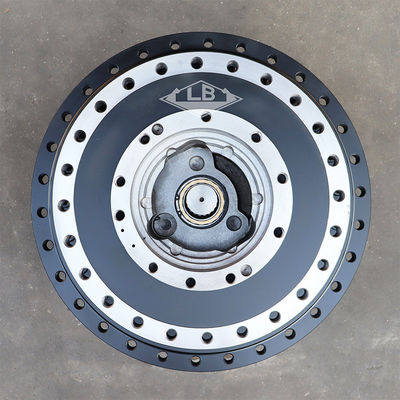

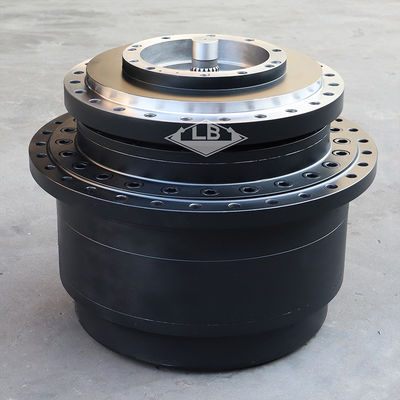

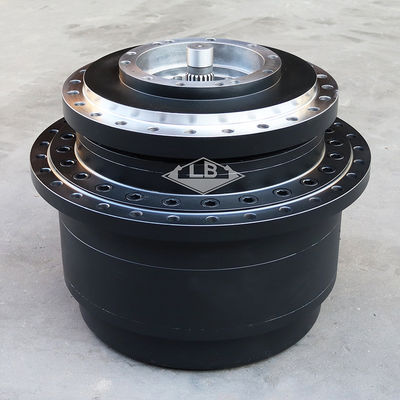

R485VS R480LC-9 R520LC-9 R500LC-7 Final drive without motor 39QB-42100 39QB-40101 R480-9 Travel gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
Product Description
PRODUCT PARAMETERS
| Part name | R485VS R480LC-9 R520LC-9 R500LC-7 Travel gearbox | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | 39QB-42100 39QB-40101 | |||||
| Frame holes | 24 | |||||
| Sprocket holes | 30 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 620KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group TRAVEL REDUCTION GEAR(TYPE 3):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4158, 4166 |
| *-2. | 39QB-42100 | [1] | TRAVEL REDUCTION GEAR | |
| 1. | 39QB-42110 | [1] | GEAR-RING | |
| 2. | 39QB-42120 | [2] | BEARING-BALL | |
| 3. | 39Q8-42130 | [2] | SEAL ASSY-FLOATING | |
| 4. | 39QB-42130 | [1] | NUT-RING | |
| 5. | 39QB-42140 | [1] | PLATE-LOCK | |
| 6. | S017-120206 | [4] | BOLT-HEX | |
| 7. | S482-130020 | [1] | PIN-PARALLEL | |
| 8. | 39QB-42150 | [1] | HOUSING | |
| 9. | S109-120356 | [16] | BOLT-SOCKET | |
| 10. | 39QA-42360 | [1] | COUPLING | |
| K11. | 39QB-42170 | [1] | CARRIER | |
| K12. | 39QB-42180 | [4] | GEAR-PLANATARY | |
| K13. | 39Q8-42210 | [4] | BEARING-NEEDLE | |
| K14. | 39QB-42190 | [8] | WASHER-THRUST | |
| K15. | 39QB-42200 | [4] | PIN-CARRIER | |
| K16. | S472-910404 | [4] | PIN-SPRING | |
| K17. | 39Q8-42240 | [4] | PIN-SOLID | |
| 18. | 39QB-42210 | [1] | GEAR-SUN | |
| K19. | 39QB-42230 | [1] | CARRIER NO.1 | |
| K20. | 39QB-42240 | [3] | GEAR-PLANETARY NO.1 | |
| K21. | 39QB-42250 | [3] | BEARING-NEEDLE | |
| K22. | 39Q8-12230 | [6] | WASHER-THRUST | |
| K23. | 39QB-42260 | [3] | PIN-CARRIER | |
| K24. | S472-600504 | [3] | PIN-SPRING | |
| 25. | 39QB-42270 | [1] | GEAR-SUN NO.1 | |
| K26. | 39Q8-42330 | [1] | PLATE-THRUST | |
| 27. | 39Q6-42320 | [1] | PLATE-THRUST | |
| 28. | 39QB-42281 | [1] | COVER | |
| 29. | 39QB-42290 | [1] | SEAL-COVER | |
| 30. | S109-100256 | [16] | BOLT-SOCKET | |
| 31. | S109-201206 | [25] | BOLT-SOCKET | |
| 32. | P220-110205 | [3] | PLUG-HEX | |
| 33. | S602-045001 | [1] | RING-RETAINING,C TYPE | |
| N34. | 39QB-42350 | [1] | NAME PLATE | |
| 35. | 39Q6-41800 | [2] | RIVET | |
| 36. | S631-024001 | [3] | O-RING | |
| K. | 39QB-42220 | [1] | CARRIER ASSY KIT 1 | SEE ILLUST |
| K. | 39QB-42160 | [1] | CARRIER ASSY KIT 2 | SEE ILLUST |
