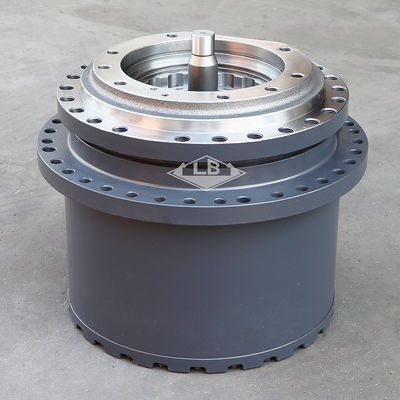

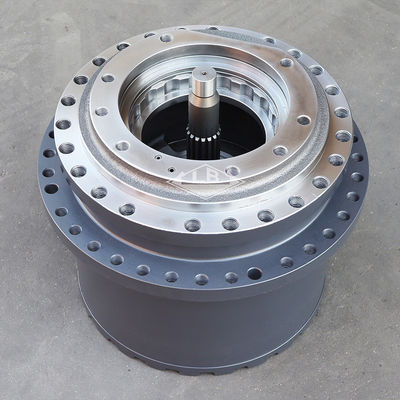

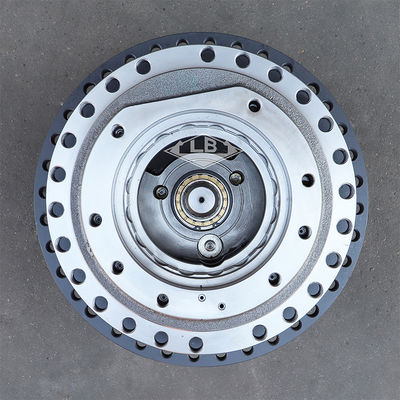

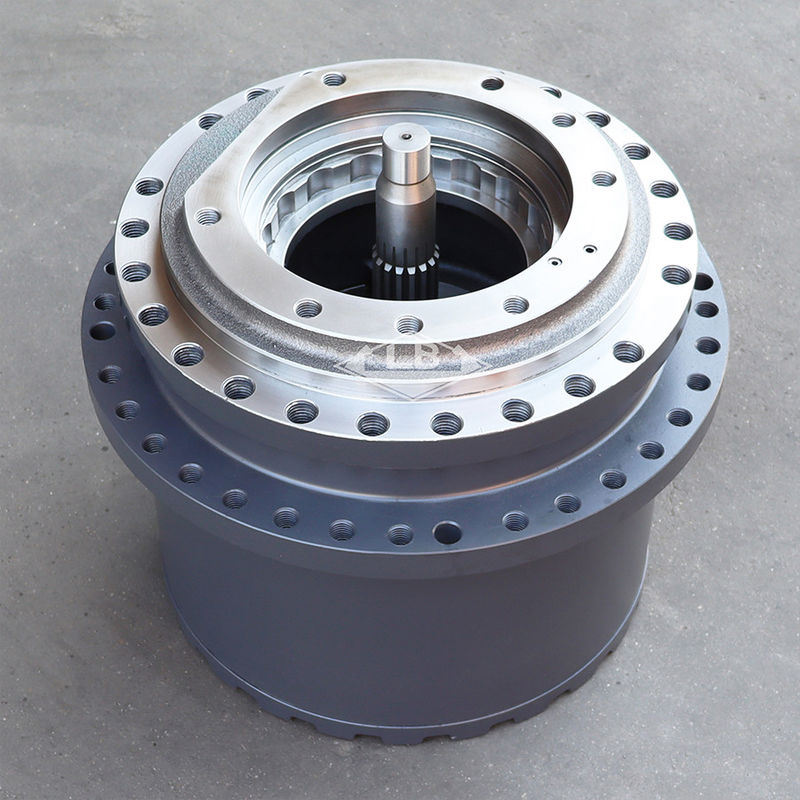

DX380 DX420 TRAVEL REDUCTION GEAR 170402-00025 170402-00025A 170402-00025B 170402-00025D DX420 Travel gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
Product Description
PRODUCT PARAMETERS
| Part name | DX380 DX420 Travel gearbox | |||||
| Equipment | Apply to DOOSAN EXCAVATOR | |||||
| Part no. | 170402-00025 170402-00025A 170402-00025B 170402-00025D | |||||
| Frame holes | 32+6 | |||||
| Sprocket holes | 24 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 340 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group DX420LCA:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 170402-00025A | [1] | 170402-00025B | |
| -. | 170402-00025B | [1] | 170402-00025D | |
| -. | 170402-00025D | [1] | ||
| 101. | 130713-01281B | [1] | ||
| 102. | 900122-00080A | [1] | 900122-00080B | |
| 102. | 900122-00080B | [1] | ||
| 103. | 180-00345A | [2] | SEAL;FLOATING | |
| 105. | 140101-00540 | [2] | ||
| 109. | 101558-00015 | [1] | ||
| 110. | 250121-00056 | [2] | ||
| 112. | 1.412-00164 | [1] | PLATE;THRUST | |
| 130. | 100502-00156 | [1] | ||
| 131. | 130413-00020 | [4] | ||
| 132. | 1.216-00018 | [4] | CAGE;NEEDLE | |
| 133. | 130712-00652 | [4] | ||
| 134. | K9007396 | [4] | BUSH;FLOATING | |
| 135. | S5740960 | [4] | PIN;SPRING | |
| 136. | K9007394 | [8] | WASHER;THRUST | |
| 140. | 100502-00157 | [1] | ||
| 141. | 130418-00313 | [3] | ||
| 142. | 1.216-00017 | [3] | CAGE,NEEDLE | |
| 143. | 130712-00653 | [3] | ||
| 145. | S5740960 | [3] | PIN;SPRING | |
| 146. | K9007389 | [6] | WASHER;THRUST | |
| 160. | 130425-00024 | [1] | ||
| 160. | 130425-00046 | [1] | ||
| 170. | 130412-00102 | [1] | ||
| 170. | 130412-00194 | [1] | ||
| 180. | 110508-07478A | [1] | ||
| 181. | K9004304 | [1] | WASHER;THRUST | |
| 182. | 2181-1890D4 | [3] | PLUG | |
| 182. | 2181-1890D5 | [3] | BOUCHON | |
| 183. | S8000181 | [3] | O-RING | |
| 183. | S8000241 | [3] | O-RING | |
| 185. | S2212371 | [24] | BOLT |
