VOE14592003 VOE14613278 Travel Gear Box VOLVO EC700B EC700C Travel Gearbox Final Drive
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| High Light: | VOE14592003 travel gear box,travel gear box for VOLVO EC700B,VOE14613278 |
||
|---|---|---|---|
Product Description

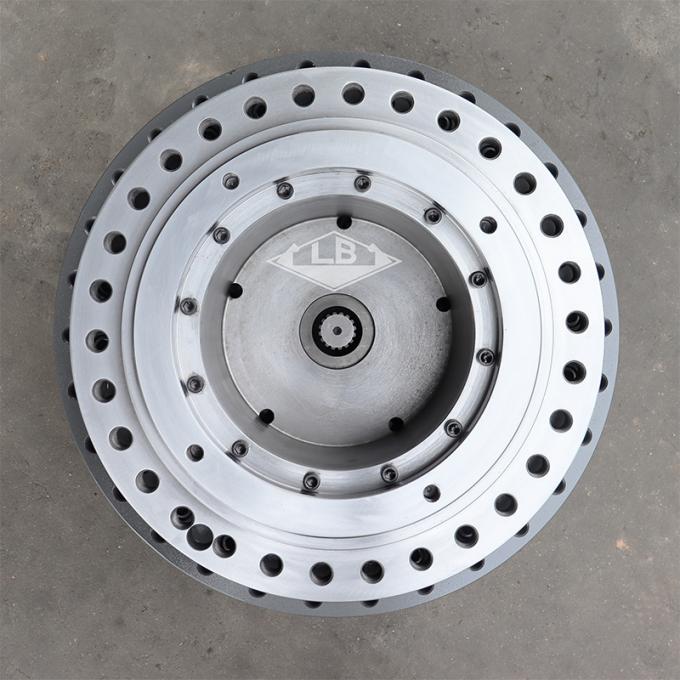

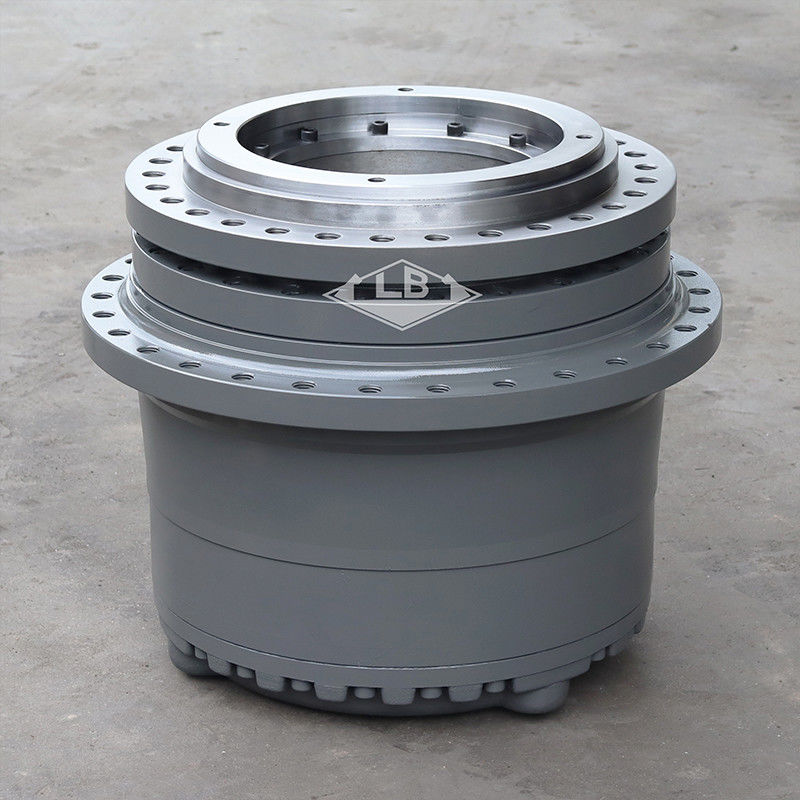

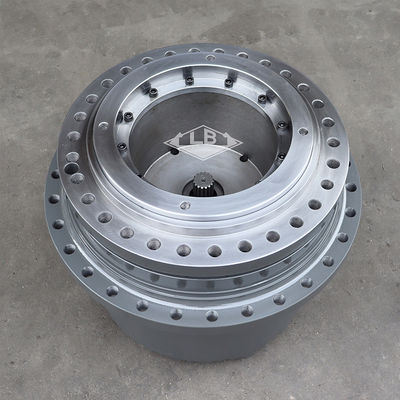

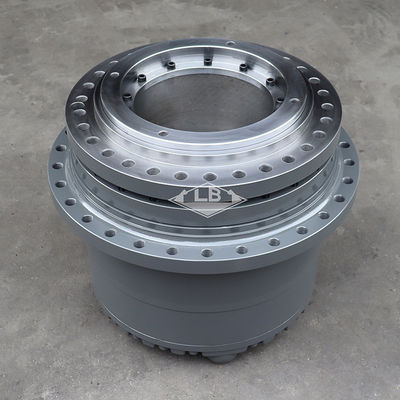

VOLVO EC700B EC700C Travel Gearbox Final drive VOE14592003 VOE14613278
PRODUCT PARAMETERS
| Part name | EC700 Travel gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14592003 VOE14613278 | |||||
| Frame holes | 30 | |||||
| Sprocket holes | 30 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 680 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group Travel gearbox:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14592003 | [1] | Reduction gear | S/N 10467-10606 | |
| VOE14613278 | [1] | Travel gearbox | S/N 10607- | |
| 1. | VOE14593926 | [1] | Cover | |
| 2. | VOE14617552 | [2] | Plug | |
| 3. | VOE14535315 | [1] | O-ring | |
| 4. | VOE11701193 | [1] | Friction washer | |
| 5. | VOE14541721 | [1] | Ring | |
| 6. | VOE14594657 | [1] | Cover | |
| 7. | VOE14535302 | [21] | Screw | |
| 8. | VOE14535307 | [1] | Gear | |
| 9. | VOE14535308 | [1] | Gear | S/N 10467-10606 |
| VOE14613363 | [1] | Gear | S/N 10607- | |
| 10. | VOE14593927 | [1] | Reduction gear | S/N 10467-10606 |
| VOE14613364 | [1] | Planet carrier | S/N 10607- | |
| 11. | VOE14541725 | [1] | Ring | |
| 12. | VOE14541726 | [3] | Clip | |
| 13. | VOE14541727 | [3] | Planetary gear | |
| 14. | VOE14541728 | [3] | Bearing | |
| 15. | [1] | Case | ||
| 16. | VOE14535310 | [1] | Reduction gear | S/N 10467-10606 |
| VOE14613365 | [1] | Planet carrier | S/N 10607- | |
| 17. | VOE14541725 | [1] | Ring | |
| 18. | VOE14541732 | [4] | Clip | |
| 19. | VOE14541729 | [4] | Planetary gear | |
| 20. | VOE14541731 | [4] | Bearing | |
| 21. | VOE14541730 | [1] | Case | |
| 22. | VOE14535311 | [1] | Ring | S/N 10467-10606 |
| VOE14613366 | [1] | Ring | S/N 10607- | |
| 23. | VOE14535312 | [5] | Clip | ID=70MM |
| 23. | VOE14594974 | [5] | Clip | ID=80MM |
| 24. | VOE14593928 | [5] | Planetary gear | |
| 25. | VOE14594971 | [1] | Planetary gear | |
| 26. | VOE14594972 | [1] | Bearing | |
| 27. | VOE14594973 | [1] | Spacer | |
| 28. | VOE14594974 | [1] | Clip | |
| 29. | VOE14535314 | [5] | Spacer | ID=77MM |
| 29. | VOE14594973 | [5] | Spacer | ID=80MM |
| 30. | VOE14535315 | [1] | O-ring | |
| 31. | VOE14593929 | [1] | Housing | |
| 32. | VOE14593930 | [1] | Screw | |
| 33. | VOE14593931 | [1] | Bar | |
| 34. | VOE14593932 | [1] | Nut | |
| 35. | VOE14535320 | [1] | Gear | |
| 36. | VOE14535321 | [2] | Bearing | |
| 37. | VOE14535322 | [1] | Spacer | |
| 38. | VOE14535323 | [1] | Spacer | |
| 39. | VOE14535324 | [1] | O-ring | |
| 40. | VOE14535325 | [1] | Cover | |
| 41. | VOE14535326 | [24] | Screw | |
| 42. | VOE14535327 | [1] | Seal | |
| 43. | VOE14593933 | [1] | Ring | |
| 44. | VOE14593934 | [1] | Hub | |
| 45. | VOE14535331 | [1] | O-ring | |
| 46. | VOE14593935 | [1] | Adapter | |
| 47. | VOE14593936 | [12] | Screw | |
| 48. | VOE14535334 | [4] | Screw |
