XKAH-00901 XKAH-01627 R210 HYUNDAI Travel Gearbox R210-7 R250-7 Final Drive Travel Reduction Gear
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| High Light: | HYUNDAI Travel Gearbox,XKAH-01627 Travel Gearbox,R250-7 Travel reduction gear |
||
|---|---|---|---|
Product Description

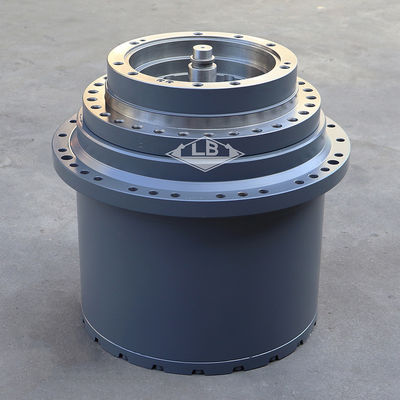

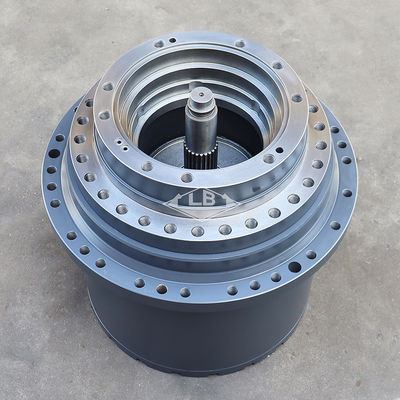

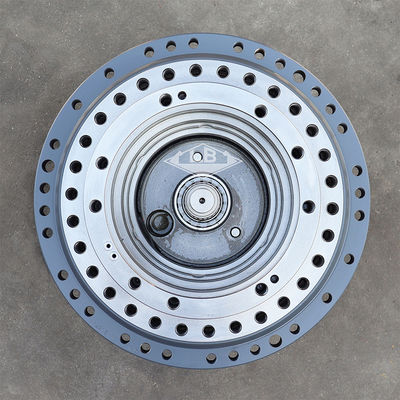

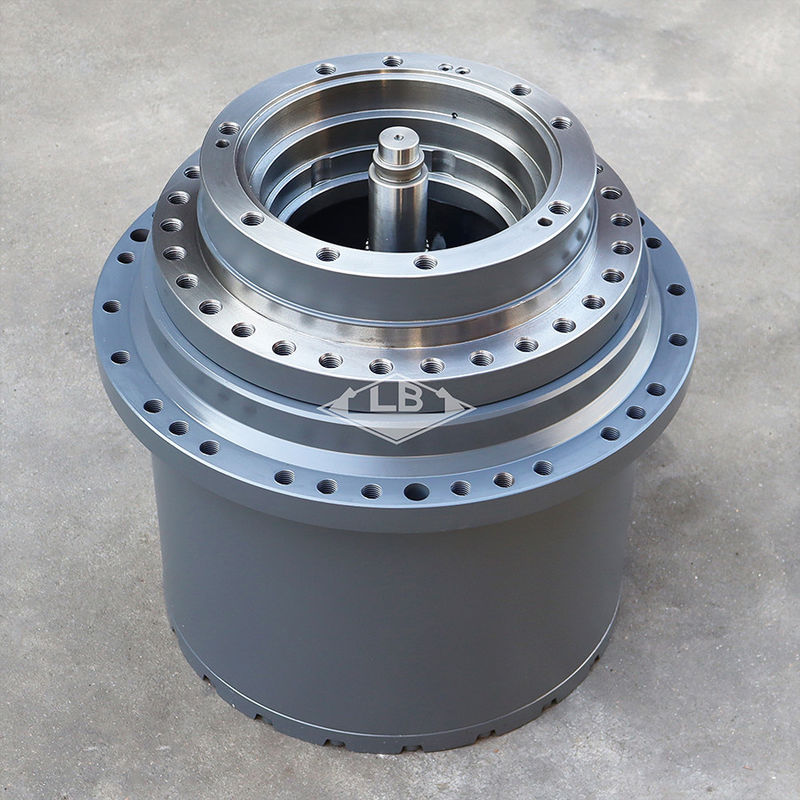

R210-7 R250-7 Final drive Travel reduction gear XKAH-00901 XKAH-01627 R210 Travel gearbox
PRODUCT PARAMETERS
| Part name | R110-7 R140LC-7 R180LC-7 R210LC-7 R250LC-7 Travel gearbox | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | XKAH-00901 XKAH-01627 | |||||
| Frame holes | 30 | |||||
| Sprocket holes | 30 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 265 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group TRAVEL REDUCTION GEAR(TYPE 1, #0473-):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4122 |
| *-7. | XKAH-00901 | [1] | REDUCTION GEAR ASSY | |
| *-7. | XKAH-01627 | [1] | REDUCTION GEAR ASSY | |
| *-71. | XKAH-00902 | [1] | HUB ASSY | |
| *-71. | XKAH-01670 | [1] | HUB ASSY | |
| N1. | XKAH-00903 | [1] | HUB | |
| N1. | XKAH-01671 | [1] | HUB | |
| 4. | XKAH-00904 | [1] | RING GEAR(A) | |
| 4. | XKAH-01672 | [1] | RING GEAR(A) | |
| 27. | XKAH-00431 | [10] | PIN-PARALLEL | |
| *-72. | XKAH-00905 | [1] | SPINDLE ASSY | |
| N2. | XKAH-00906 | [1] | SPINDLE ASSY | |
| 8. | XKAH-00907 | [1] | COUPLING GEAR | |
| 35. | XKAH-00428 | [10] | BOLT-SOCKET | |
| 17. | XKAH-00437 | [10] | PIN | |
| *-73. | XKAH-00908 | [1] | CARRIER ASSY | |
| 3. | XKAH-00909 | [1] | CARRIER | |
| 6. | XKAH-00910 | [3] | CLUSTER GEAR | |
| 9. | XKAH-00911 | [3] | SHAFT | |
| 14. | XKAH-00912 | [6] | COLLAR-THRUST | |
| 25. | XKAH-00913 | [6] | BEARING-NEEDLE | |
| 5. | XKAH-00914 | [1] | RING GEAR(B) | |
| 7. | XKAH-00445 | [1] | GEAR-SUN | |
| 12. | XKAH-00442 | [1] | PIECE-DISTENCE | |
| 13. | XKAH-00915 | [1] | COVER | |
| 13. | XKAH-01674 | [1] | COVER | |
| 15. | XKAH-00439 | [1] | RING | |
| 19. | XKAH-00022 | [1] | COUPLING | |
| 20. | XKAH-00436 | [2] | PLATE-THRUST | |
| 23. | XKAH-00435 | [1] | SEAL-RING | |
| 24. | XKAH-00434 | [2] | BEARING-BALL | |
| K26. | XKAH-00916 | [2] | SEAL-FLOATING | |
| K26. | XKAH-01675 | [2] | SEAL-FLOATING | |
| K29. | XKAH-00028 | [1] | O-RING | |
| 30. | XKAH-00338 | [3] | PLUG-PT | |
| 30. | XKAH-00032 | [3] | PLUG-PF | |
| 32. | XKAH-00430 | [20] | BOLT-HEX | |
| 32. | XKAH-01676 | [20] | SOKET BOLT | |
| 33. | XKAH-00336 | [20] | WASHER-SPRING | |
| 34. | XKAH-00429 | [3] | PIN-PARALLEL | |
| 36. | XKAH-00033 | [1] | BALL-STEEL | |
| K39. | XKAH-00194 | [2] | O-RING | |
| K40. | XKAH-00427 | [1] | O-RING | |
| K. | XKAH-01077 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [1] | NOT SUPPLIED PARTS |
