9149237 9155748 Travel Gear Box EX300-5 EX350-5 Hitachi Excavator Final Drive
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| High Light: | 9149237 travel gear box,9155748 Travel travel gear box,9155748 |
||
|---|---|---|---|
Product Description

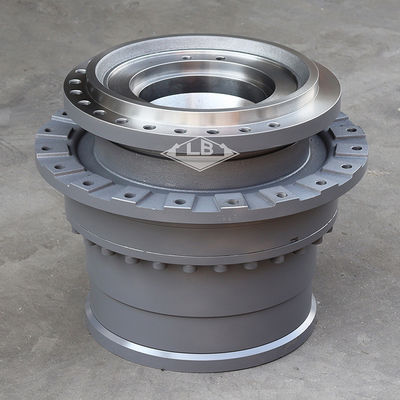

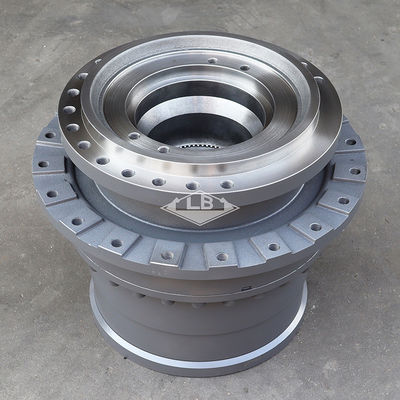

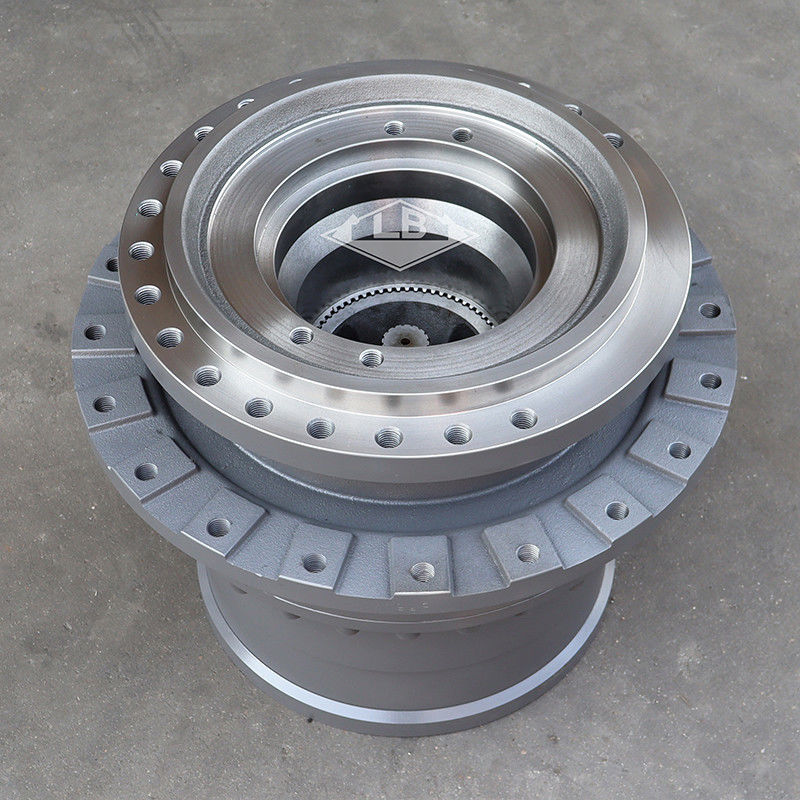

9149237 9155748 EX300-5 EX350-5 Hitachi Excavator Final Drive Travel gearbox
PRODUCT PARAMETERS
| Part name | EX300-5 EX350-5 Travel gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9149237 9155748 | |||||
| Frame holes | 20 | |||||
| Sprocket holes | 20 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 325 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group TRAVEL DEVICE <STD. TRACK><LC TRACK>:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| (9155748) | [2] | TRAVEL DEVICE ASSY | <for transportation> | |
| 9149237 | [2] | TRAVEL DEVICE ASSY | I 9155748 <for assembly of machine> | |
| 00. | (9155694) | [1] | MOTOR;OIL | <for transportation> |
| 00. | 9149125 | [1] | MOTOR;OIL | I 9155694 <for assembly of machine> |
| 02. | 1022194 | [1] | HOUSING | |
| 03. | 4066695 | [1] | SEAL;GROUP | |
| 04. | 4192975 | [2] | BRG.;ROL. | |
| 05. | 1022179 | [1] | DRUM | |
| 06. | 1022168 | [1] | SPROCKET | |
| 07. | A590920 | [20] | WASHER;SPRING | |
| 08. | J932060 | [20] | BOLT | |
| 10. | 3036256 | [1] | NUT | |
| 11. | 4192974 | [1] | PLATE;LOCK | |
| 12. | J901225 | [2] | BOLT | |
| 14. | 1022198 | [1] | CARRIER | |
| 15. | 4192979 | [2] | SPACER | |
| 16. | 3075003 | [3] | GEAR;PLANETARY | |
| 18. | 4269470 | [6] | PLATE;THRUST | |
| 19. | 4269452 | [3] | PIN | |
| 20. | 4192021 | [3] | PIN;SPRING | |
| 21. | 3075005 | [1] | GEAR;SUN | |
| 22. | 4371402 | [6] | BRG.;NEEDLE | |
| 23. | 1022195 | [1] | GEAR;RING | |
| 24. | J931640 | [28] | BOLT | |
| 26. | 1022197 | [1] | CARRIER | |
| 27. | 3075002 | [3] | GEAR;PLANETARY | |
| 28. | 4183818 | [3] | BRG.;NEEDLE | |
| 29. | 4284521 | [6] | PLATE;THRUST | |
| 30. | 4269451 | [3] | PIN | |
| 31. | 4197763 | [3] | PIN;SPRING | |
| 32. | 3074989 | [1] | GEAR;SUN | |
| 34. | 1022196 | [1] | CARRIER | |
| 35. | 4308769 | [1] | SPACER | |
| 36. | 3075001 | [3] | GEAR;PLANETARY | |
| 37. | 4269471 | [3] | BRG.;NEEDLE | |
| 38. | 4284520 | [6] | PLATE;THRUST | |
| 39. | 4269472 | [3] | PIN | |
| 40. | 4192020 | [3] | PIN;SPRING | |
| 41. | 2038915 | [1] | SHAFT;PROP. | |
| 43. | 2038904 | [1] | COVER | |
| 44. | 4277474 | [1] | PIN;STOPPER | |
| 45. | 4278168 | [1] | BRG.;BALL | |
| 46. | 930451 | [1] | RING;RETAINING | |
| 47. | J011230 | [16] | BOLT;SEMS | |
| 48. | 4245797 | [3] | PLUG | |
| 50. | 4269473 | [1] | O-RING | |
| 51. | 4287213 | [4] | WASHER;SPRING | |
| 52. | M341885 | [4] | BOLT;SOCKET | |
| 54. | 3053559 | [1] | NAME-PLATE | |
| 55. | M492564 | [2] | SCREW;DRIVE |
